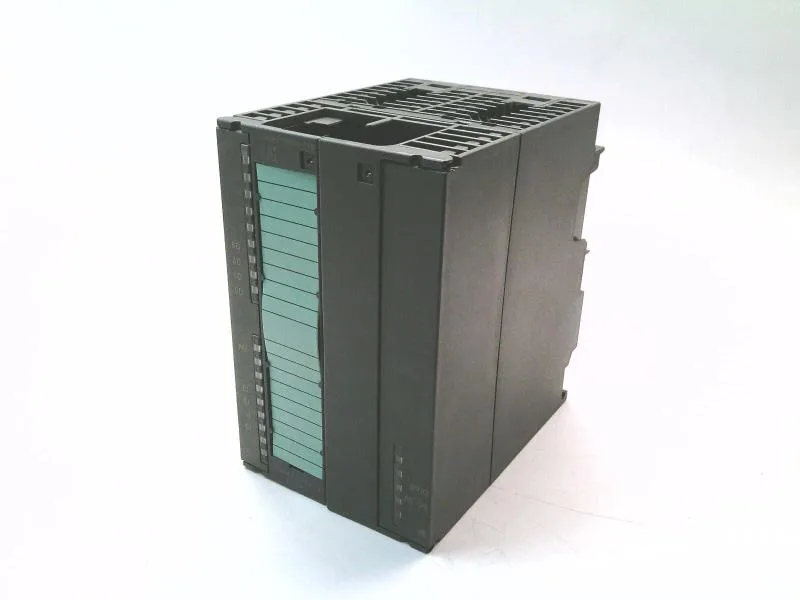

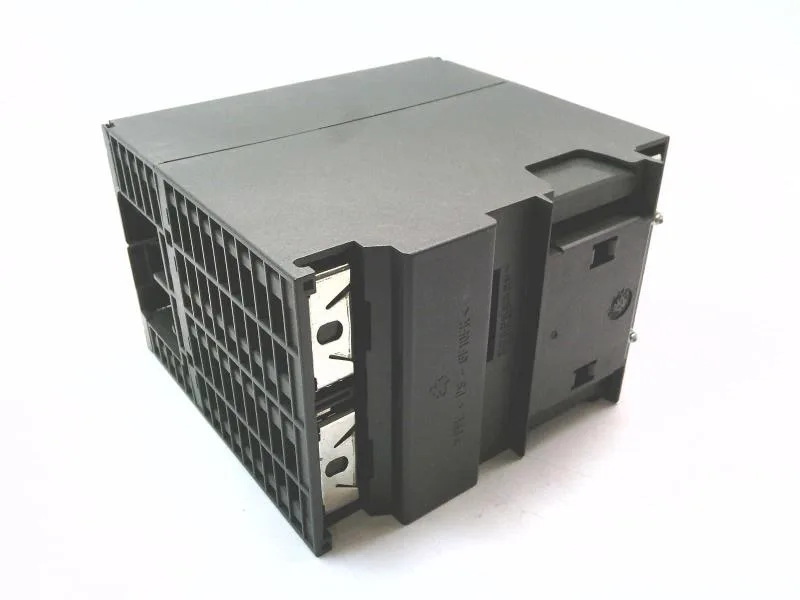

Siemens SIMATIC S7-300 6ES7353-1AH01-0AE0 function module FM 353 for stepper motor positioning, 7.0 W, 4 digital inputs + 1 message input, 4 digital outputs, 24 V DC, discontinued.
| Parameter | Value |
|---|---|
| Digital inputs | 4; + 1 input for message signal |
| Digital outputs | 4 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| For signal "1" | +11 to +30V |
| For signal "0" | -3 to +5V |
| Current for signal "1" (typ.) | 6 mA; 6 to 15 mA |
| Max. | 70 °C |
| Power loss (typ.) | 7 W |
| Short-circuit protection | Yes |
| Parameter | Value |
|---|---|
| Min. | -40 °C |
| Parameter | Value |
|---|---|
| Height | 125 mm |
| Width | 80 mm |
| Depth | 118 mm |
| Weight (approx.) | 500 g |
The 6ES7353-1AH01-0AE0 is a Siemens SIMATIC S7-300 FM 353 function module that positions a stepper motor via pulse/direction signals, drawing 7.0 W from a 24 V DC supply and offering 4 digital inputs plus 1 message-signal input and 4 digital outputs.
Siemens lists the 6ES7353-1AH01-0AE0 as discontinued; no official successor is named in the available records.
