Siemens SIMATIC S7-300, IM 365 interface module for expanded temperature range, 6ES7365-0BA81-0AA0, EOL status.
| Parameter | Value |
|---|---|
| Power loss (typ.) | 0.5 W |
| Current consumption from backplane bus (5 V DC), max. | 100 mA |
| Parameter | Value |
|---|---|
| Height | 125 mm |
| Width | 40 mm |
| Depth | 120 mm |
| Weight (approx.) | 580 g |
| Parameter | Value |
|---|---|
| Number of interfaces per CPU, max. | 1; 1 pair |

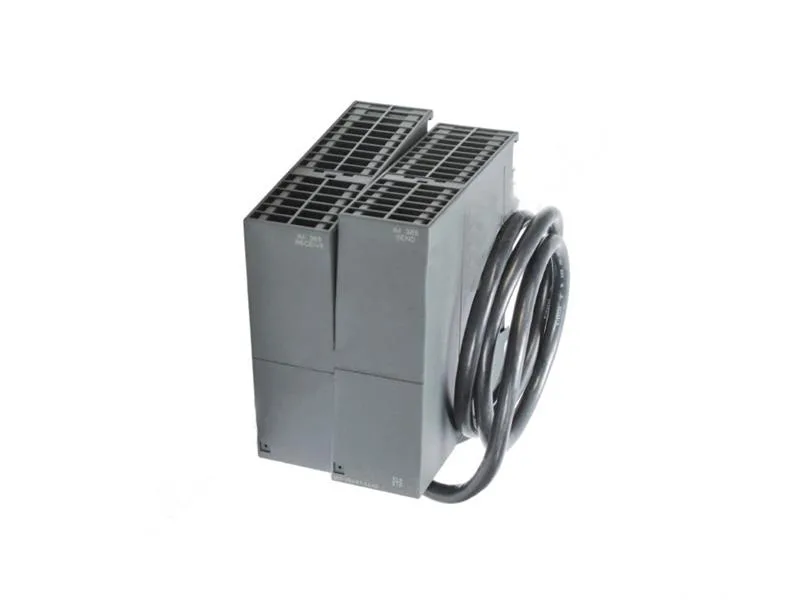

The Siemens 6ES7365-0BA81-0AA0 is an IM 365 interface module for the S7-300 family, designed to connect a CPU rack to an expansion rack without K-bus, for use in expanded temperature range applications. It ships with a 1-metre connecting cable and supports one pair of interfaces per CPU.
No official successor is listed in the record. For a replacement, evaluate the expansion needs against current S7-300 interface modules or consider migrating to the S7-1200/1500 platform with the appropriate interface module.
Alternative models and sibling configurations in the same Siemens series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
