What it is and what it connects

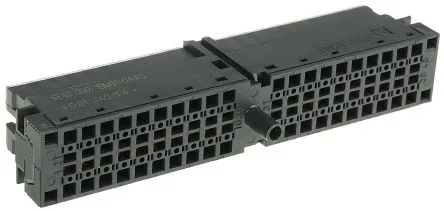

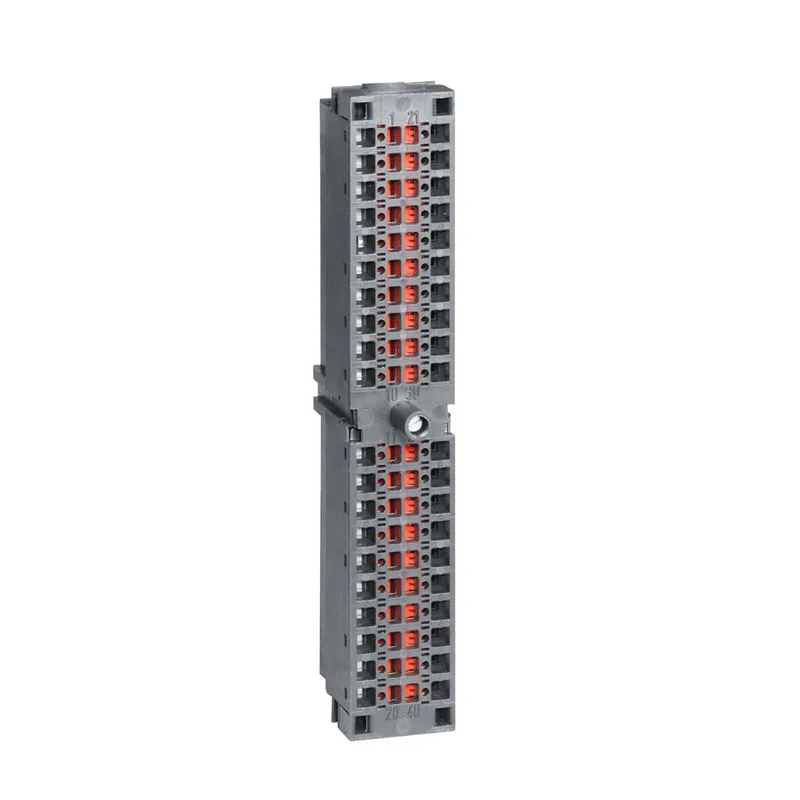

The 6ES7392-1BM01-0AA0 is a 40-pole front connector with spring-loaded contacts for SIMATIC S7-300 signal modules. This is the wiring interface between field devices and the I/O module's internal electronics — the part that gets terminated in the panel and then plugged into the module face. Rated for -40 °C to 70 °C, so it handles cold storage or warm cabinet environments without issue. Dimensions are 21.6 mm wide, 126 mm high, 40.9 mm deep — a slim profile that doesn't steal much DIN rail space.
Wiring reality with spring terminals
Spring-clamp terminals accept one conductor per line, or two cables up to 0.75 mm² total in a shared end sleeve. The stripped length is fixed at 6 mm, and end sleeves per DIN 46228 with plastic collar (Design E, up to 6 mm long) are the intended termination. This means prepping wires with ferrules is the standard practice — bare stranded wire without a ferrule is possible but the min/max cross-sections differ, so stick to ferruled for reliability.
