Siemens 6ES7408-1TA01-0XA0 — PLC I/O & Expansion Modules

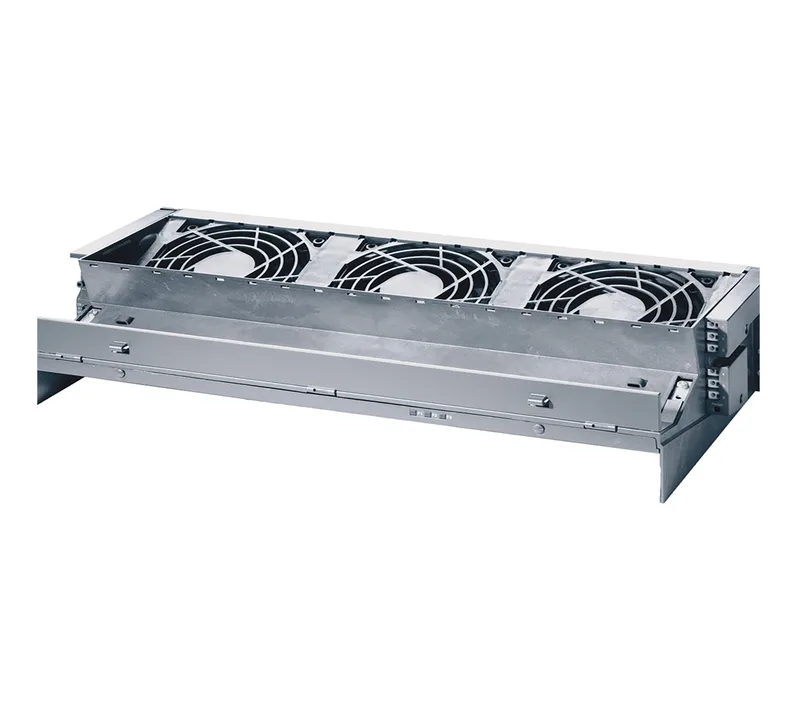

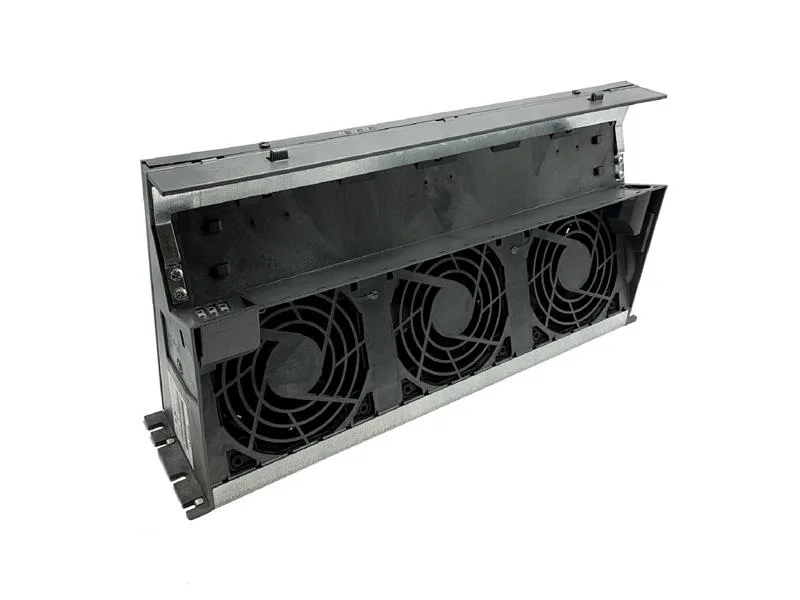

Siemens 6ES7408-1TA01-0XA0 Fan Module for S7-400 18-Slot Rac

MPN6ES7408-1TA01-0XA0

Siemens SIMATIC S7-400, fan module for rack with 18 slots, 24 V DC, 235 mm depth, 482.5 mm width, 109.5 mm height, approx. 1 600 g.

$1,061.85Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7408-1TA01-0XA0 — Electrical
ParameterValue
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)30 V
6ES7408-1TA01-0XA0 — Mechanical
ParameterValue
Height109.5 mm
Width482.5 mm
Depth235 mm
Weight (approx.)1 600 g
6ES7408-1TA01-0XA0 — Other specifications
ParameterValue
24 v DCYes
Power loss, max.11 W
Inrush current, typ.0.9 A; at 24 V
With resistive load, max.200 mA
Rated supply voltage of relay coil l+24 V

Product details

The Siemens 6ES7408-1TA01-0XA0 is a fan module for the SIMATIC S7-400 rack with 18 slots, running on 24 V DC. It pulls 0.9 A typical inrush at 24 V, so size your PSU for that spike — the steady-state draw is lower, but the inrush is what trips a marginal supply on power-up. The permissible DC range runs 19.2 V to 30 V, with the relay coil rated at exactly 24 V DC; if your panel bus dips below 19.2 V, the module drops out.

Electrical characteristics for the integrator

The module's max resistive load on the relay contacts is 200 mA — that's a signal-level output, not a power contact. If you're driving a contactor coil or a solenoid, buffer it through an interposing relay. The 24 V DC supply is isolated from the rack backplane; the inrush current of 0.9 A at 24 V is a cold-start transient, lasting maybe 20-50 ms. Your 24 V PSU should have at least 1.5 A headroom to avoid a brownout on the whole rack during power-on.

Frequently asked questions

What are the key mechanical dimensions of 6ES7408-1TA01-0XA0?

The module measures 482.5 mm wide, 109.5 mm tall, and 235 mm deep. It fits the 19-inch rack format of the S7-400 18-slot rack.

What is the power consumption and supply voltage range for this fan module?

Maximum power loss is 11 W. The supply voltage range is 19.2 V to 30 V DC, with the relay coil rated at 24 V DC. Typical inrush current is 0.9 A at 24 V.

Where can I buy 6ES7408-1TA01-0XA0 and get current pricing?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
