Siemens SIMATIC S7-400, fan module for 18-slot rack, 120/230 V AC, 20 W power loss, 482.5 x 109.5 x 235 mm.
| Parameter | Value |
|---|---|
| Height | 109.5 mm |
| Width | 482.5 mm |
| Depth | 235 mm |
| Weight (approx.) | 2 000 g |
| Parameter | Value |
|---|---|
| 120 v AC | Yes |
| 230 v AC | Yes |
| Power loss, max. | 20 W |
| Inrush current, typ. | 0.6 A at rated voltage 230 VAC: 1.15 A: at rated voltage 120 VAC |
| With resistive load, max. | 200 mA |
| Permissible range, lower limit | 47 Hz |
| Permissible range, upper limit | 63 Hz |
| Rated supply voltage of relay coil l+ | 24 V |

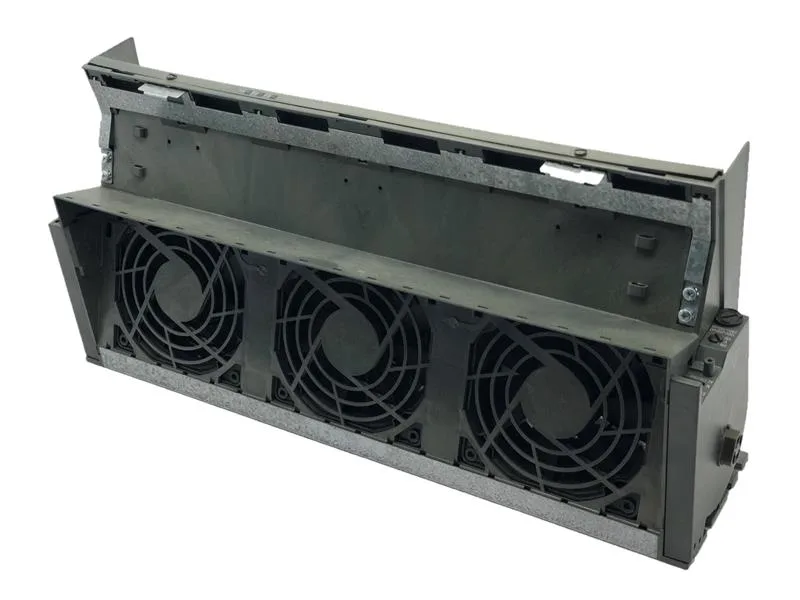

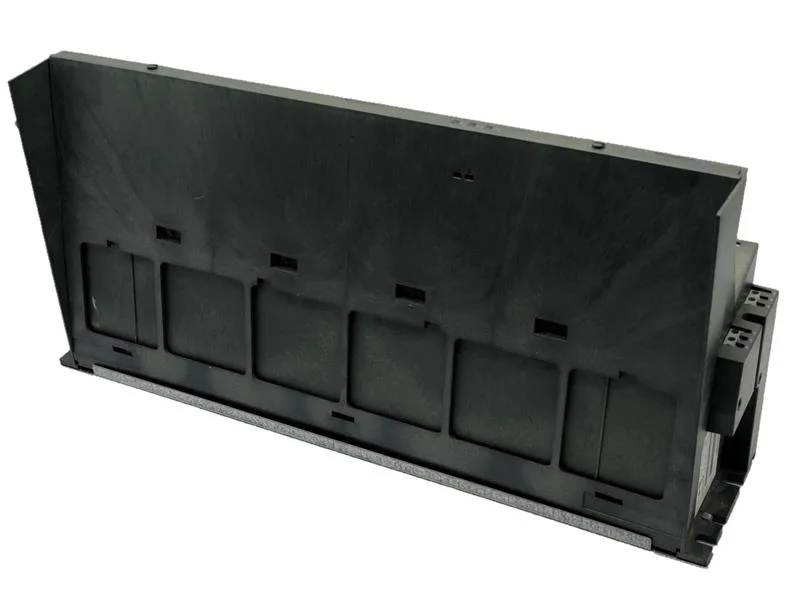

The Siemens 6ES7408-1TB00-0XA0 is a fan module for the SIMATIC S7-400 rack with 18 slots, accepting 120 V AC or 230 V AC supply. It draws a typical inrush current of 0.6 A at 230 V AC and 1.15 A at 120 V AC, with a maximum power loss of 20 W. The relay coil is rated at 24 V DC, and the module handles resistive loads up to 200 mA. Frequency range is 47 Hz to 63 Hz.
It accepts both 120 V AC and 230 V AC, with a permissible frequency range of 47 Hz to 63 Hz.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm landed-cost picture.
Width 482.5 mm, height 109.5 mm, depth 235 mm. Weight approximately 2 000 g.
