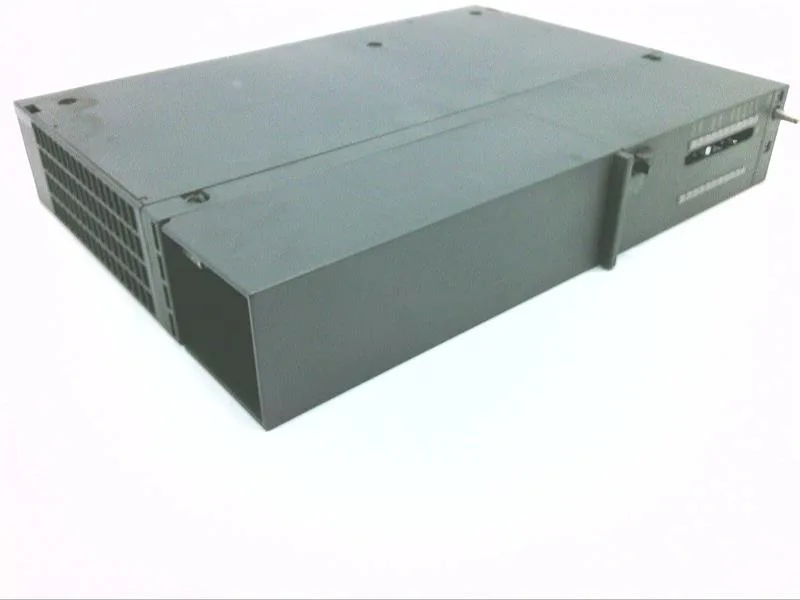

The Siemens 6ES7414-3EM07-0AB0 is a SIMATIC S7-400 CPU 414-3 PN/DP central processing unit. It carries 244 bytes each of process-input and process-output image, which governs how much field I/O the CPU can scan in a single cycle without resorting to direct peripheral access — adequate for a medium-size process skid or a burner-management cabinet where the I/O count stays under a couple of hundred channels. The CPU supports LAD, FBD, STL, SCL, GRAPH, and CFC programming languages, so whatever IEC 61131-3 dialect your team uses, this processor can compile it. IRT (isochronous real-time) is present, meaning the PROFINET cycle can be synchronised to the scan for applications that need deterministic jitter — a turbine governor or a high-speed packaging section, provided the network topology and IO devices also support IRT. The FM (fault-masking) capability is listed as limited by the number of slots and the number of connections — not a blanket per-block limit, but a function of how many modules you have racked and how many PROFINET or DP links are active. For a panel with, say, twelve I/O modules and three DP slaves, the practical FM count will be lower than on a sparse rack. Plan your diagnostic concept accordingly: the CPU can force outputs and mask faults, but the resource is shared with communication connections.
Integration into an S7-400 rack — panel-builder notes
The CPU occupies a single slot in a standard S7-400 rack. Its width is 50 mm, depth 219 mm, height 290 mm — a full-size S7-400 module that needs the deeper UR2 or UR1 rack, not the shallow ER1. The front panel carries the PROFINET interface (two ports, switch-integrated), a PROFIBUS DP interface, and a combined MPI/DP port. Note that MPI is listed as not supported on this CPU revision — the MPI/DP port operates in DP mode only, so any legacy MPI-only programming cables or HMI panels will not communicate directly. Use the PROFINET interface for programming and HMI connectivity instead. The RS 485 interface is present, which on this CPU is the PROFIBUS DP port. Up to four CP 443-1 PROFINET communication processors can be added in the central controller, but the evidence warns against mixed operation of different CP 443-1 types in PROFINET IO mode — keep the CP revision uniform across the rack. For point-to-point links, the CP 440 and CP 441 are supported, limited by the same slot and connection constraints as the FM capability.
Compliance and approvals — what the certifications cover
The CPU carries CE marking for the European market and cULus listing for North America, so it is accepted in panels destined for either jurisdiction without additional component-level certification. The ATEX approval is ATEX II 3G Ex nA IIC T4 Gc, which permits installation in Zone 2 (gas) areas — a common requirement for CPU placement just outside the hazardous boundary in a petrochemical or pharmaceutical plant. The T4 temperature class (135 °C surface) is safe for most gas groups except hydrogen and acetylene. Operating temperature range is 0 °C to 60 °C, which covers unconditioned control rooms but not outdoor cabinets in direct sun without climate control.
Communication and data record handling
The CPU supports TCP/IP and UDP via the integrated PROFINET interface and loadable function blocks — no additional CP needed for basic Ethernet communication. Routing is possible with the interface active, which lets the CPU forward messages between subnets. For data-record access, the CPU provides SFB 52 (RDREC) and SFB 53 (WRREC), each with 8 instances per interface but not more than 32 across all external interfaces. The equivalent SFC 58 and SFC 59 also support 8 instances per interface. SFC 51 (RDSYSST) gives 8 instances for reading system status lists. SFC 55 provides 8 parameter-writing instances per interface. These limits matter when you have multiple HMI or SCADA connections all requesting data records — the pool is shared.
