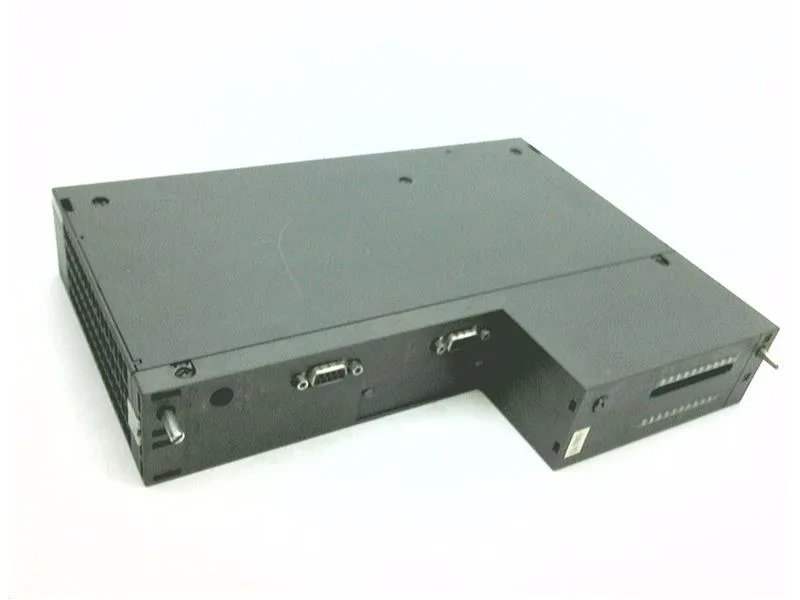

Siemens 6ES7414-3XJ00-0AB0

Siemens 6ES7414-3XJ00-0AB0 S7-400 CPU, 244 byte I/O, 1 ms re

MPN 6ES7414-3XJ00-0AB0

Siemens S7-400 CPU, 6ES7414-3XJ00-0AB0, 244 byte I/O, 1 ms resolution, FM 32 limited by slots and connections.

$1,873.25 – $2,029.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7414-3XJ00-0AB0 specifications
ParameterValue
Product typeSFB
Depth219 mm
Width50 mm
Height290 mm
Nesting levels8
Required slots2
Shortest clock pulse5 ms; 2.5 ms without using the SFCs 126 / 127

Product details

CPU for process-critical S7-400 racks

The Siemens 6ES7414-3XJ00-0AB0 is an S7-400 CPU with a 244-byte input and 244-byte output process image, giving it a solid I/O footprint for mid-sized distributed control. It runs a 1 ms resolution cycle, which means time-critical loops—like those on a fired heater or compressor antisurge—can be closed within that window without jitter. The functional map (FM) is rated at 32, limited by the number of slots and connections in the rack; that caps how many CPs, IMs, and FMs you can hang off this CPU before you need a second controller or an expansion.

Programming and protocol support

This CPU supports the full S7-400 programming language set: LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph. That means a team can mix ladder for discrete logic, structured text for math blocks, and CFC for continuous-function-chart process loops without swapping tools. MPI and RS 485 are onboard; S7 routing is active when the interface is enabled, so you can reach remote racks through the same programming cable. Forcing is supported—useful during commissioning to override a sensor without rewiring, but lock it out in production.

Mounting and expansion constraints

The module measures 50 mm wide, 290 mm high, and 219 mm deep—standard S7-400 form factor, so it slots into any UR1/UR2 rack without adapters. It is not expandable (no local I/O bus extension), so all I/O must sit on the central rack or be reached via PROFIBUS DP through a CP. It supports up to 10 connections via CP, 32 CP LAN connections, and 32 CP PtP connections, each limited by the number of slots available. Two integrated interfaces are present; one is reserved for PG/OP, leaving the other for the control network.

MPN
6ES7414-3XJ00-0AB0
