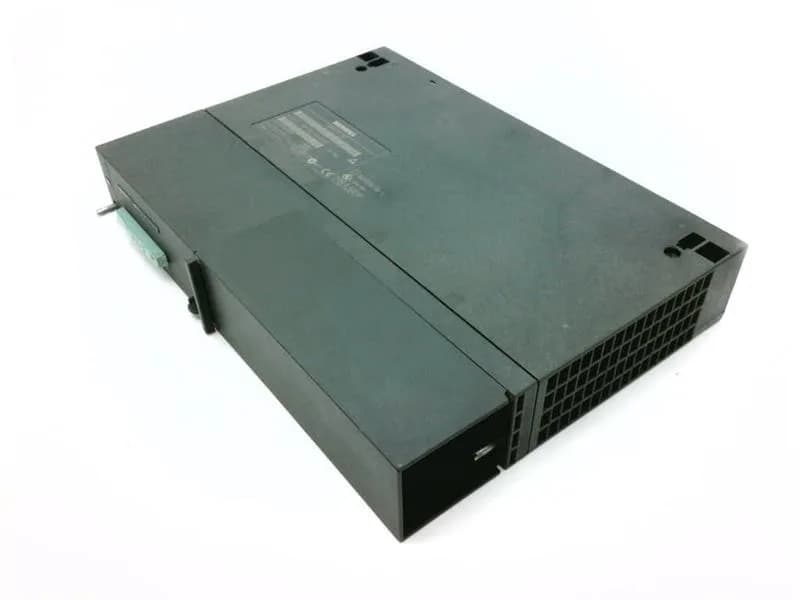

Siemens 6ES7416-3XL04-0AB0
MPN6ES7416-3XL04-0AB0
********** Replacement part ********* SIMATIC S7-400, CPU 416-3 Central processing unit with: work memory 5.6 MB, (2.8 MB code, 2.8 MB data), 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP, 3rd interface plug-in IFM module
$4,601.38Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.04 µs |
| Execution time, word operations (typ.) | 0.04 µs |
| Execution time, floating-point arithmetic (typ.) | 0.12 µs |
| Size, max. | 16 kbyte |
I/O
| Parameter | Value |
|---|---|
| Expandable | No |
| Input data area | 244 byte |
| Output data area | 244 byte |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | Power supply via system power supply |
| Power loss (typ.) | 5 W |
Mechanical
| Parameter | Value |
|---|---|
| Width | 50 mm |
| Height | 290 mm |
| Depth | 219 mm |
| Weight (approx.) | 1 070 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | pluggable interface module (IF), technical data as for 2nd interface |
Specifications
| Parameter | Value |
|---|---|
| Expandable FEPROM | Yes; with Memory Card (FLASH) |
MPN
6ES7416-3XL04-0AB0
