What this 16-channel input module does for an S7-400 rack

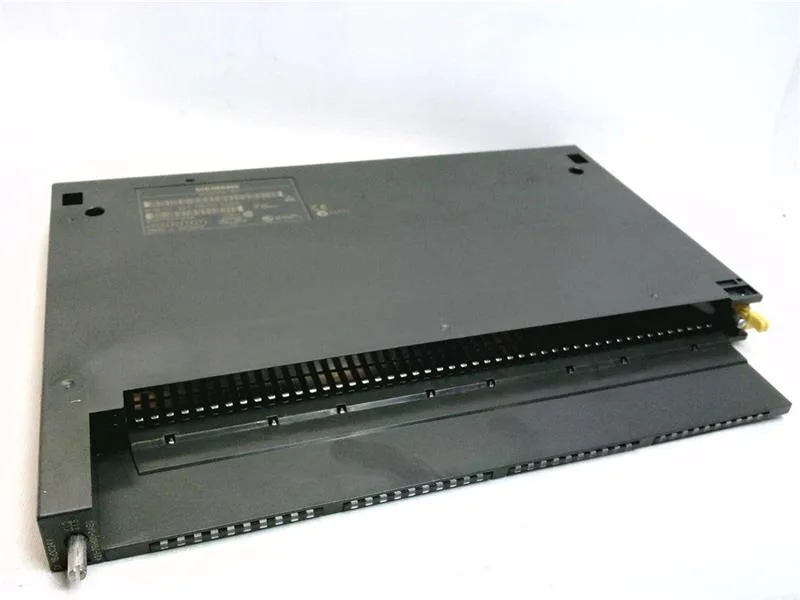

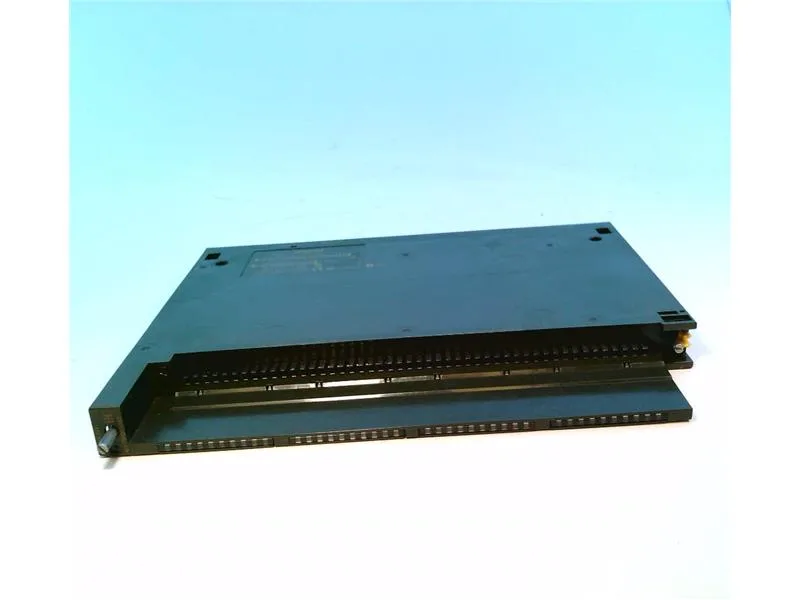

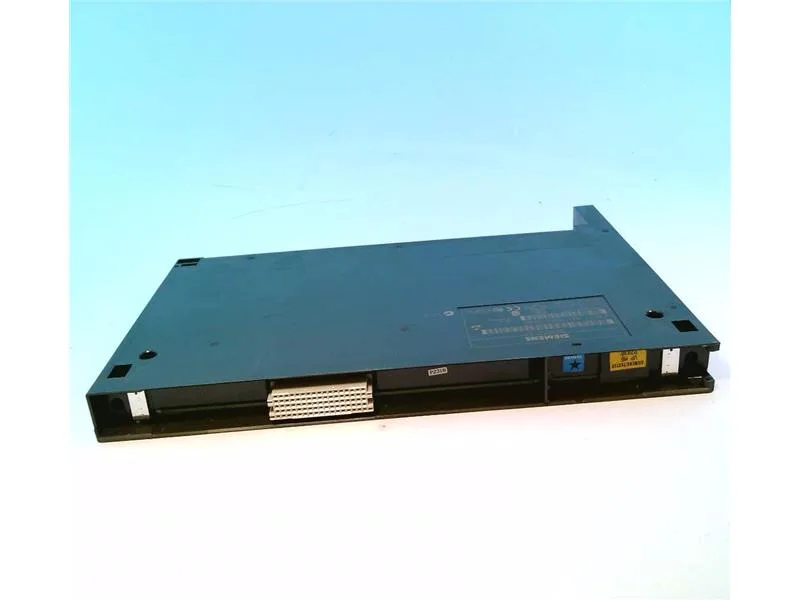

The Siemens 6ES7421-7BH00-0AB0 is a SIMATIC S7-400 SM 421 digital input module that gives you 16 optically isolated inputs at 24V DC. It's the go-to choice when you need to bring discrete field signals — limit switches, proximity sensors, pushbuttons — into the S7-400 backplane and you want the wiring diagnostics and interrupt handling that a basic input module doesn't offer. Each input channel accepts a signal "1" from 11V DC to 30V DC, with a typical current draw of 6 mA per channel. The signal "0" threshold is -30V DC to +5V DC, so it handles floating or slightly negative signals without false triggering — useful when you're sharing a common return with inductive loads.
Input delay, cable length, and 2-wire sensor compatibility
The input delay is parameterizable: 0.1 ms, 0.5 ms, or 3 ms. Shielded cable length at 3 ms is 1,000 m; at 0.5 ms it is 70 m; at 0.1 ms it is 30 m. Unshielded: 600 m at 3 ms, 50 m at 0.5 ms, 20 m at 0.1 ms. This module supports 2-wire proximity sensors, with a maximum permissible quiescent current of 3 mA. That means you can use standard 2-wire DC sensors without worrying about the off-state leakage falsely triggering the input — a common headache with older input cards.
Diagnostics, interrupts, and channel isolation
You get a diagnostic alarm and a hardware interrupt on this module — both are parameterizable. That means you can configure the module to generate an interrupt on a rising or falling edge, which is handy for high-speed counting or position-capture applications where you can't afford to poll the inputs. The 16 inputs are isolated in groups of 8 channels, with 500V DC isolation tested between the channels and the backplane bus. That gives you a clean separation between field wiring and the S7-400 rack, reducing the chance of a ground loop coupling noise into the backplane.
Power budget and physical fit in the rack
The module draws 130 mA from the 5V DC backplane bus and up to 120 mA from the 24V DC supply voltage L+. The 24V supply range is 20.4V to 28.8V DC, which covers the standard 24V nominal with margin for a sagging supply in a crowded cabinet.
