Siemens 6ES7422-1BL00-0AA0

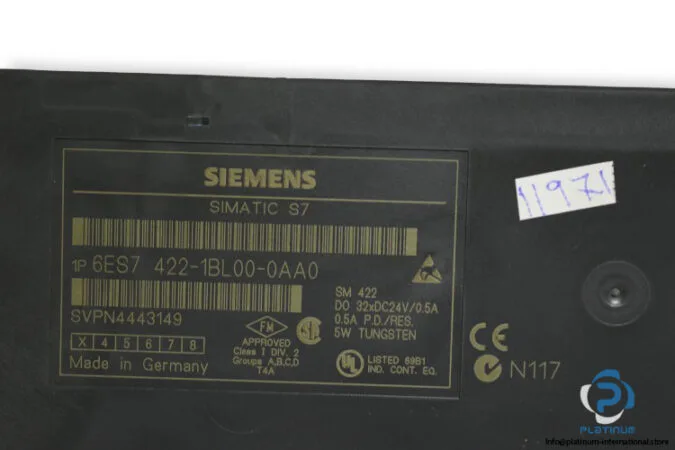

Siemens 6ES7422-1BL00-0AA0 SM 422 digital output module, 32 outputs

MPN 6ES7422-1BL00-0AA0
NRND

Siemens 6ES7422-1BL00-0AA0 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$166.66 – $360.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7422-1BL00-0AA0 specifications
ParameterValue
Depth210 mm
Width25 mm
Height290 mm

Product details

Overview

The 6ES7422-1BL00-0AA0 is a Siemens SM 422 digital output module for the S7-400 programmable logic controller platform, providing 32 digital outputs rated at 0.5 A each with a Profibus interface for integration into the rack-based backplane. It operates on a 24 V DC supply, measures 290 x 25 x 210 mm, weighs 600 g, and is rated IP20 for installation in a protected control cabinet on a rack-mount backplane.

This module switches 32 digital outputs, each capable of 0.5 A continuous current, with a minimum load resistance of 48 Ω and a maximum of 4 kΩ. The signal-1 voltage at the output is L+ minus 0.3 V, ensuring a clean ON-state voltage drop. Switching times are symmetrical at 1 ms for both turn-on and turn-off, making it suitable for moderate-speed discrete control tasks such as valve actuation, contactor drives, and indicator banks. The module communicates over Profibus, relying on the S7-400 CPU for program execution and diagnostics.

Applications

The SM 422 digital output module is used in Siemens S7-400-based automation systems for medium-to-large process and manufacturing lines — chemical batch plants, power generation auxiliaries, water treatment skids, and material handling systems — where a high density of 32 discrete outputs per slot is needed to drive solenoids, motor starters, and status indicators.

MPN
6ES7422-1BL00-0AA0
