Siemens 6ES7422-7BL00-0AB0 — Digital Output Modules

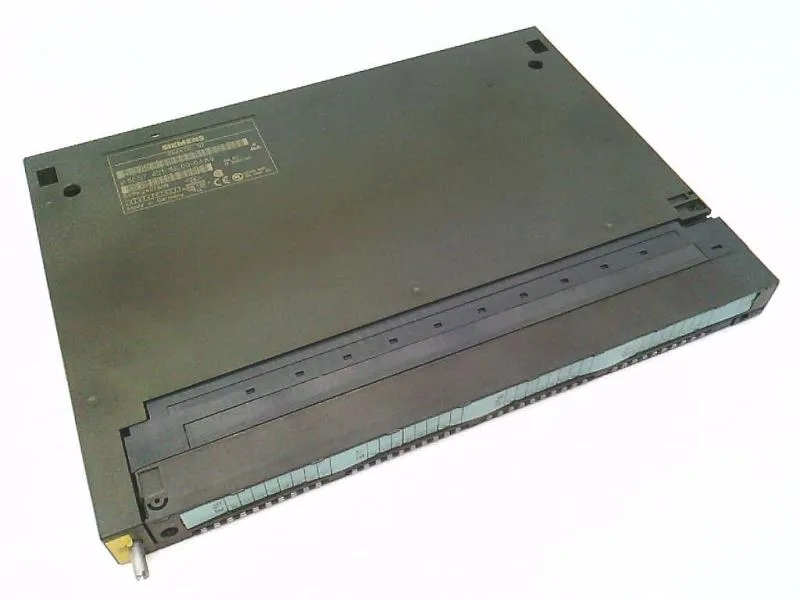

6ES7422-7BL00-0AB0 Siemens S7-400 DO 32×24 V DC 0.5 A

MPN6ES7422-7BL00-0AB0
NRND

Siemens S7-400 digital output module, 32 outputs, 24 V DC, 0.5 A rated, 25 mm width, 210 mm depth, 600 g.

$744.00 – $835.10Ref. price · indicative, final on quote
Siemens 6ES7422-7BL00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7422-7BL00-0AB0 — Outputs
ParameterValue
Digital outputs32
6ES7422-7BL00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)0.5 A
Output current, max. per circuit / per module600 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Output voltage at signal "1" (min.)L+ (-0.8 V)
Residual current at signal "0", max.0.5 mA
Output current up to 60 °C, max.2 A
Current consumption from backplane bus (5 V DC), max.200 mA
Power dissipation (typ.)8 W
Inductive shutdown voltage clampL+ (-45 V)
Load resistance, upper limit4 kΩ
Load resistance, lower limit48 Ω
Isolation between channelsYes
Isolation between channels and backplane busYes
Isolation, channels in groups of8
Isolation test voltage500 V DC
6ES7422-7BL00-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes; Clocked electronically
Diagnostics functionYes; Parameterizable
Diagnostic alarmYes; Parameterizable
Short-circuit response threshold (typ.)0.75 to 1.5 A
Short-circuit detectionYes; > 1 A (typ.)
Wire-break detectionYes; <0.15 mA
Redundant load controlYes; possible (only outputs of the same group)
Output can drive a digital inputYes; possible
6ES7422-7BL00-0AB0 — Performance
ParameterValue
Switching frequency, inductive load, max.2 Hz
Switching frequency, lamp load, max.2 Hz
6ES7422-7BL00-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width25 mm
Height290 mm
Depth210 mm
Weight (approx.)600 g

Product details

Integrator note – 32-point DO for S7-400 racks

The 6ES7422-7BL00-0AB0: Short-circuit protection is clocked electronically with a typical response threshold of 0.75 to 1.5 A; wire-break detection flags any open load carrying less than 0.15 mA. Diagnostic and hardware interrupts are parameterizable via the configuration software.

For uprating (paralleling outputs), Siemens allows it only within the same group of 8. Redundant control of a load is also limited to outputs of the same group. The module can also drive a digital input directly when configured for that purpose. Power loss is 8 W typical. Supply voltage range is 20.4 to 28.8 V DC. Residual current at signal '0' is maximum 0.5 mA; minimum voltage for signal '1' is L+ minus 0.8 V.

Frequently asked questions

Will 6ES7422-7BL00-0AB0 drop into a panel designed for 6ES7222-1BF22-0XA0?

No. The module uses the S7-400 backplane and is 25 mm wide with a different mounting profile. The S7-200 peer is a different physical standard; rewiring and rack change are required.

What are the key dimensions of this module?

Height 290 mm, depth 210 mm, width 25 mm. Weight approximately 600 g.
