Siemens 6ES7432-1HF00-0AB0 — Analog Output Modules

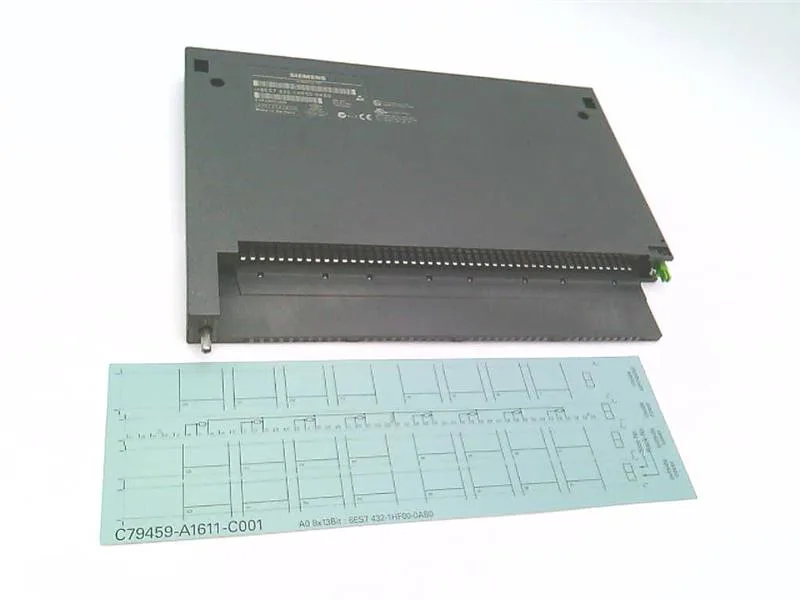

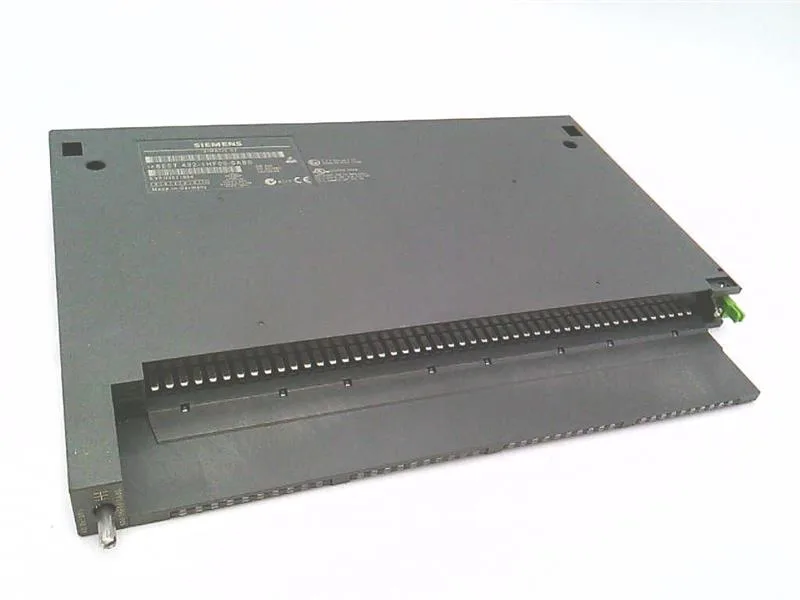

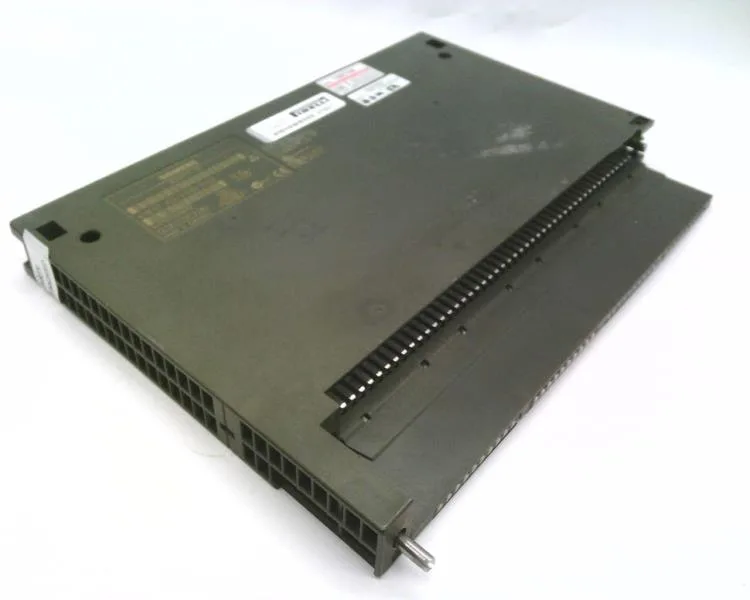

Siemens 6ES7432-1HF00-0AB0 SM 432 analog output module, 8 AO, 13 bit

MPN6ES7432-1HF00-0AB0
NRND

Siemens 6ES7432-1HF00-0AB0 — now in phase-out and being discontinued, supplied from remaining surplus and broker stock.

$536.00 – $867.97Ref. price · indicative, final on quote
Siemens 6ES7432-1HF00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7432-1HF00-0AB0 — Outputs
ParameterValue
Number of analog outputs8
Output range: -10 V to +10 VYes
Output range: 0 to 10 VYes
Output range: 1 V to 5 VYes
Output range: 0 to 20 mAYes
Output range: 4 to 20 mAYes
Output range: -20 mA to +20 mAYes
Load resistance, current outputs, max.500 Ω; 600 ohms if common-mode-voltage reduced to <1 V
Load resistance, voltage outputs, min.1 kΩ
Current output, no-load voltage, max.19 V
Voltage output, short-circuit current, max.30 mA
Voltage output, short-circuit protectionYes
Capacitive load, voltage outputs, max.1 µF
Cable length, shielded, max.200 m
6ES7432-1HF00-0AB0 — Performance
ParameterValue
Resolution (incl. sign, with overrange), max.13 bit
Error, voltage output (rel. to output range)0.5 %; ±10 V, 0 to 10 V, 1 to 5 V
Error, current output (rel. to output range)0.5 %; ±20 mA, 0 to 20 mA
Conversion time (per channel)420 µs; 420 µs in the ranges 1 to 5 V and 4 to 20 mA; 300 µs in all ranges
Settling time, resistive load0.1 ms
Settling time, inductive load0.5 ms
Settling time, capacitive load3.5 ms
6ES7432-1HF00-0AB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss (typ.)9 W
Current consumption from backplane bus (5 V DC), max.150 mA
Reverse polarity protectionYes
6ES7432-1HF00-0AB0 — Diagnostics
ParameterValue
Diagnostics functionNo
6ES7432-1HF00-0AB0 — Isolation
ParameterValue
Isolation: channels to backplane busYes
Isolation: between channelsNo
Isolation: channels to load voltage L+Yes
Isolation test voltage2 120 V DC between bus and L+/M; 2 120 V DC between bus and analog section; 500 V DC between bus and local ground; 500 V DC between analog section and L+/M; 2 120 V DC between analog section and local ground; 2 120 V DC between L+/M and local ground
6ES7432-1HF00-0AB0 — Mechanical
ParameterValue
Width25 mm
Height290 mm
Depth210 mm

Product details

Overview

The 6ES7432-1HF00-0AB0 is a Siemens SIMATIC S7-400 SM 432 analog output module providing 8 isolated analog outputs with 13-bit resolution across voltage and current ranges.

Siemens has phased out the 6ES7432-1HF00-0AB0 as of 2025-10-01. Send an RFQ to confirm availability for your BOM.
