What this counter module does in an S7-400 rack
The 6ES7450-1AP00-0AE0 is a counter module for the S7-400 platform — it decodes incremental encoder signals (RS 422, differential) and tracks position or event counts at up to 200 kHz per channel. Two 32-bit (or ±31-bit) counter inputs handle gate-start, gate-stop, and counter-set functions independently, with a minimum pulse width of 2.5 µs at 200 kHz or 25 µs at 20 kHz — parameterisable per channel. Six digital inputs (24 V, sink/source) capture limit-switch or registration-mark signals, and four digital outputs (0.5 A each, clocked short-circuit protection) drive small loads or reset counters directly — no separate I/O module needed for this loop.
Encoder interface and signal conditioning
The RS 422 differential input accepts encoder signals with a minimum differential voltage of 0.5 V — signal '1' threshold is +11 to +28.8 V, signal '0' is -28.8 to +5 V (or -30 to +5 V at the input side), giving noise immunity on long cable runs. A 220 Ω terminating resistor is built in, so you don't need an external terminator at the module end for the encoder line. Direction control uses one pulse train plus one direction level (24 V directional element), and the 5 V encoder supply is regulated to 5.2 V ±2 % — enough for most incremental encoders drawing up to 300 mA total.

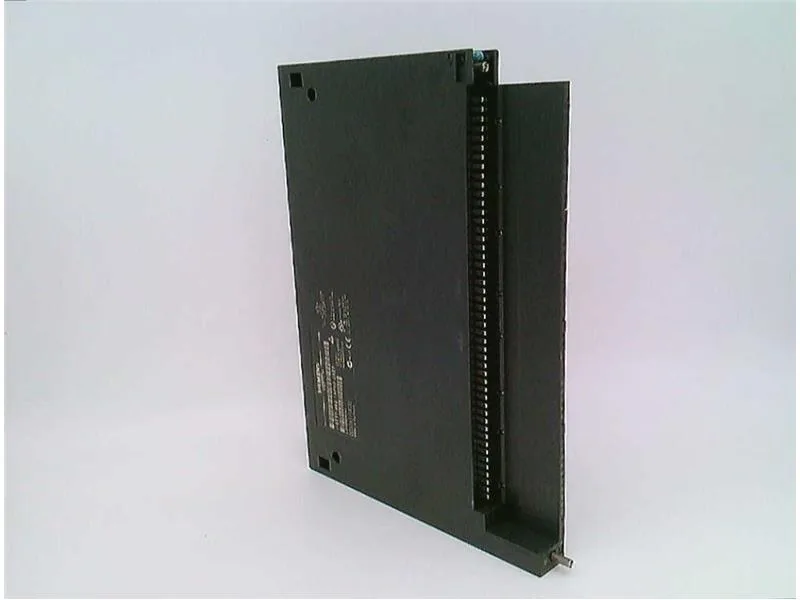

The module occupies a single S7-400 slot (25 mm wide, 290 mm high, 210 mm deep) and requires a 48-pin front connector — order that separately; it does not ship with the module. Fourteen green LEDs show status for counter readings, direction, inputs, and outputs — handy for on-commissioning sanity checks without a programming device. Diagnostic and hardware interrupts are parameterisable and reported via the backplane bus, with red LEDs for internal (INTF) and external (EXTF) faults.
The 6ES7450-1AP00-0AE0 is in a mature lifecycle stage — still available through distribution channels, but not in active factory ramp production. No direct official successor is listed for this order code. If you're planning a new S7-400 build or a BOM freeze, confirm availability at quote time — we source this against an RFQ and confirm current pricing and lead time per your quantity.
