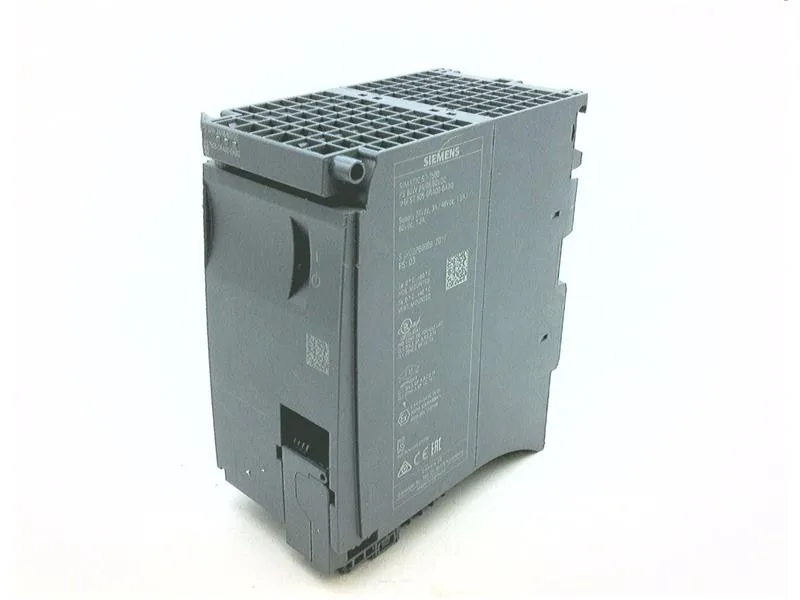

Siemens 6ES7505-0RA00-0AB0

Siemens 6ES7505-0RA00-0AB0 PS 60W, 24/48/60 V DC

MPN 6ES7505-0RA00-0AB0
Active

Siemens SIMATIC S7-1500 system power supply PS 60W, 24/48/60 V DC, 6ES7505-0RA00-0AB0. Supplies the backplane bus with 60 W, rated 3 A at 24 V DC, 1.5 A at 48 V DC, 1.2 A at 60 V DC. Active production.

$368.30 – $685.68 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7505-0RA00-0AB0 specifications
ParameterValue
IP ratingIP20
Depth129 mm
Width70 mm
Height147 mm

Product details

Backplane bus power for S7-1500 racks

The Siemens 6ES7505-0RA00-0AB0 is the system power supply PS 60W for the SIMATIC S7-1500, delivering 60 W to the backplane bus. It accepts 24 V, 48 V, or 60 V DC input and provides the isolated power that the rack's modules need to communicate and operate. Rated current varies with input voltage: 3 A at 24 V DC, 1.5 A at 48 V DC, and 1.2 A at 60 V DC. The input range extends from 19.2 V DC static (18.5 V dynamic) up to 72 V DC static (75.5 V dynamic), so it handles a sagging or floating DC bus without dropping the rack.

Isolation and protection specs

Reinforced isolation to 230 V AC separates the input from the backplane bus, tested at 2 500 V DC for 2 s as a routine test. That means this supply can share a panel with line-voltage contactors or drives without coupling noise into the S7-1500 backplane. Built-in short-circuit protection and reverse polarity protection are standard. The 20 ms mains failure stored energy time keeps the rack alive through a brief dip. Power loss at nominal rating is 12 W, which factors into the enclosure thermal budget. Equipment protection class I with a protective conductor terminal. IP20 rated — intended for a clean, enclosed control cabinet, not washdown areas.

Mounting and firmware status

Configurable in STEP 7 V5.5 SP3 or higher and TIA Portal V12 or higher. The status indicator on the front gives a quick visual on output health during commissioning.
