Siemens 6ES7510-1DJ00-0AB0 — PLC Communication Modules

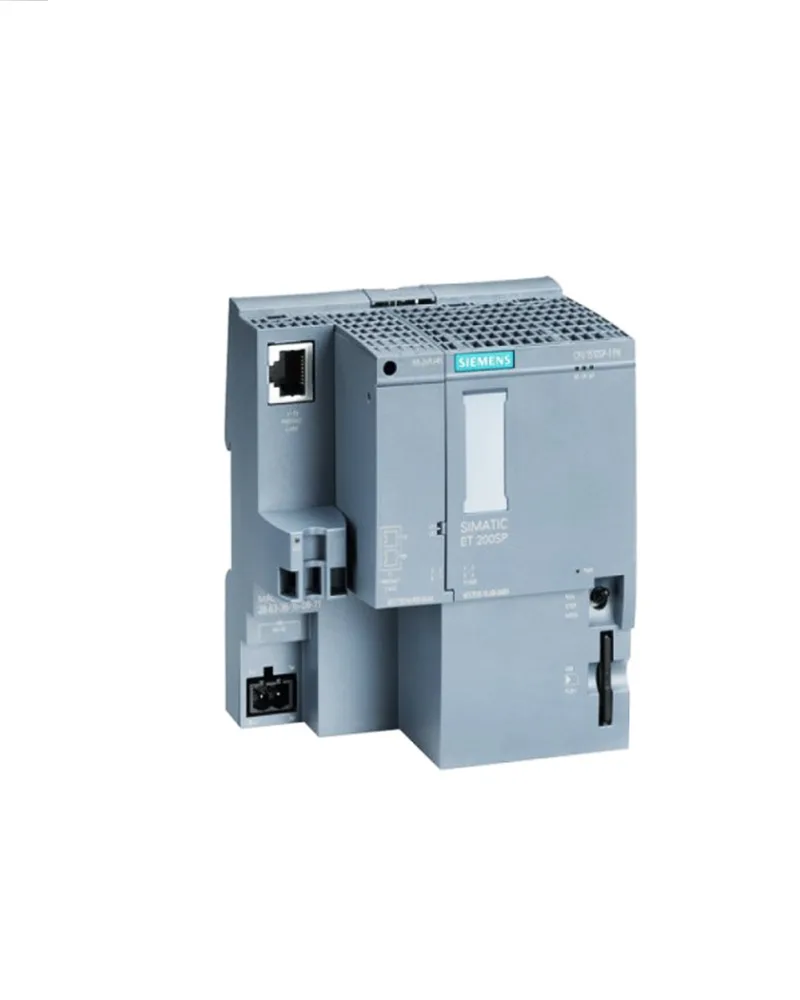

Siemens 6ES7510-1DJ00-0AB0 CPU 1510-1 PN, MRP, PID

MPN6ES7510-1DJ00-0AB0

Siemens SIMATIC S7-1500 CPU 1510-1 PN, 6ES7510-1DJ00-0AB0, MRP redundancy manager, integrated PID temperature control, 32 kB I/O process image, MODBUS TCP.

$873.25Ref. price · indicative, final on quote
Siemens 6ES7510-1DJ00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7510-1DJ00-0AB0 — Identification
ParameterValue
Configurable from STEP 7 TIA Portal versionV13 SP1 Update 4
Firmware versionV1.8
Hardware functional status (FS)FS04
6ES7510-1DJ00-0AB0 — Communication
ParameterValue
Transmission rate, max.12 Mbit/s
TCP/IP supportYes
Isochronous modeNo
6ES7510-1DJ00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Power loss (typ.)5.6 W
Reverse polarity protectionYes
6ES7510-1DJ00-0AB0 — I/O
ParameterValue
Input data area32 kbyte; All inputs are in the process image
Output data area32 kbyte; All outputs are in the process image
6ES7510-1DJ00-0AB0 — Environmental
ParameterValue
Operating temperature, horizontal install, min.0 °C
Operating temperature, horizontal install, max.60 °C
Operating temperature, vertical install, max.50 °C
Operating temperature, vertical install, min.0 °C
6ES7510-1DJ00-0AB0 — Mechanical
ParameterValue
Width100 mm
Height117 mm
Depth75 mm
TypeHardware clock

Product details

CPU 1510-1 PN: S7-1500 mid-range controller with redundancy and built-in PID

The 6ES7510-1DJ00-0AB0 supports PROFINET with MRP as redundancy manager (ring up to 50 devices) and MRPD with IRT. Integrated PID controllers handle temperature and valve positioning. The process image accommodates 32 kbytes each for inputs and outputs, all presented in the process image—no external mapping required.

Communication and protocol support

Ethernet interface runs at 100 Mbps and supports MODBUS TCP alongside PROFINET. Default HTTP and HTTPS server allow standard and user-defined pages. No DHCP client; configure IP statically or via DCP. SNMP, LLDP, and UDP are available for network diagnostics. Programming can be done in LAD, FBD, STL, SCL, and GRAPH—all supported. S7 routing and forcing are enabled. The hardware clock is present.

Width 100 mm, height 117 mm, depth 75 mm. Mounts on standard DIN rail or panel.

MPN
6ES7510-1DJ00-0AB0
