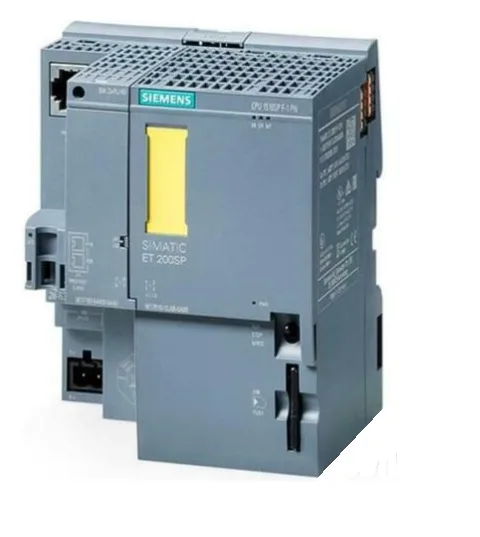

Siemens S7-1500 CPU 1510SP-1 PN, order code 6ES7510-1SJ01-0AB0, PROFINET IRT, MRP, 32 kB process image.
| Parameter | Value |
|---|---|
| Configurable from STEP 7 TIA Portal version | V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher |
| Firmware version | V2.9 |
| Hardware functional status (FS) | FS05 |
| Parameter | Value |
|---|---|
| Transmission rate, max. | 12 Mbit/s |
| TCP/IP support | Yes |
| I&M data support | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Current consumption, max. | 0.9 A |
| Power loss (typ.) | 5.6 W |
| Reverse polarity protection | Yes |
| Parameter | Value |
|---|---|
| Input data area | 32 kbyte; All inputs are in the process image |
| Output data area | 32 kbyte; All outputs are in the process image |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal install, min. | -25 °C; No condensation |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | -25 °C; No condensation |
| Parameter | Value |
|---|---|
| Width | 100 mm |
| Height | 117 mm |
| Depth | 75 mm |
| Type | Hardware clock |
The 6ES7510-1SJ01-0AB0: I&M data (I&M0 to I&M3) carries device identification and maintenance records, useful for asset tracking in larger plants. Programming options include FBD, LAD, SCL, STL, and GRAPH, with failsafe function blocks available in FBD and LAD. Built-in and controllers handle temperature and valve loops directly on the CPU.
Yes, DCP (Discovery and Configuration Protocol) is supported for automatic network configuration and device identification.
Yes, DNS is supported, allowing hostname resolution over the network.
The CPU provides 32 kbyte of process image for inputs and 32 kbyte for outputs, all directly in the process image.
