Safety and deterministic motion – the key ratings

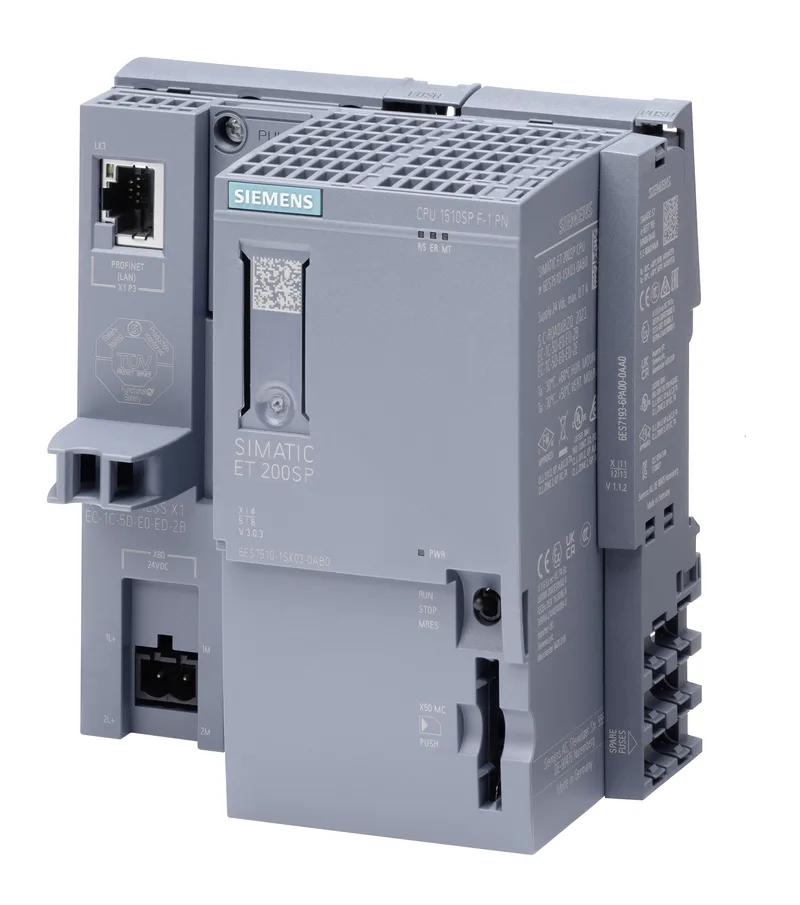

The 6ES7510-1SK03-0AB0: PROFIsafe V2.4 / V2.6 is built in, so the CPU can run safety-oriented programs (F‑LAD, F‑FBD) without a separate safety module. For motion control, IRT combined with MRPD (Isochronous Real-Time with Media Redundancy for Planned Duplication) allows cycle times down to sub‑ms for coordinated drive groups. The I²t let‑through energy of 0.3 A²·s refers to the internal current‑limiting behaviour — useful for coordinating upstream protection devices; it is not a continuous rating. Multiple programming languages are available natively: LAD, FBD, STL, SCL, GRAPH, plus failsafe variants of the first two.
Network services and onboard functions
The CPU handles DCP (Discovery and Configuration Protocol) for automatic PROFINET device naming, DNS for resolving hostnames in industrial networks, DHCP, LLDP, SNMP, and HTTP/HTTPS with user‑definable pages. Modbus TCP is supported natively, and RS485 via a CM DP module. Two built‑in PID controllers cover continuous temperature loops (PID‑Temp) and valve positioning (PID‑3Step). The hardware clock is standard, and I&M data (I&M0‑I&M3) is present for asset tracking. Forcing is possible on non‑fail‑safe signals; fail‑safe channel forcing is not supported.
