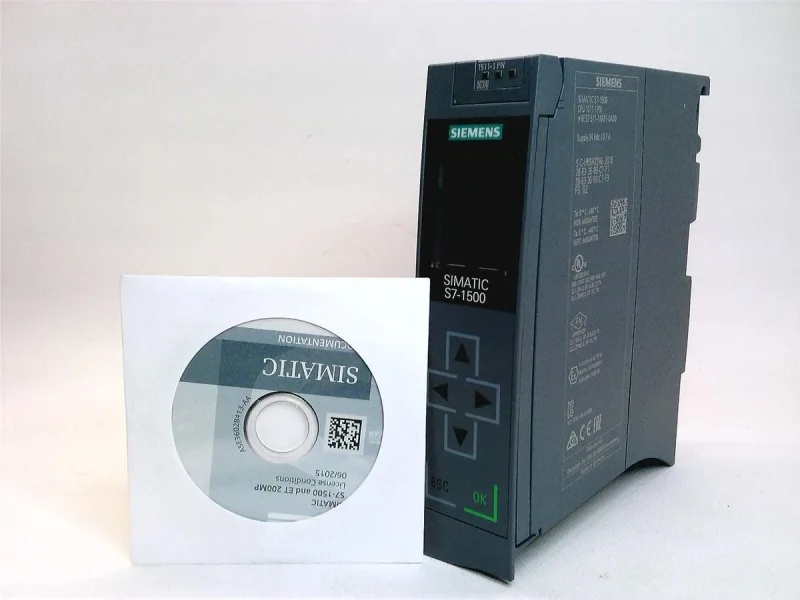

Siemens 6ES7511-1AK01-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7511-1AK01-0AB0 S7-1500 CPU, PROFINET IRT

MPN6ES7511-1AK01-0AB0

Siemens 6ES7511-1AK01-0AB0, S7-1500 series, CPU 1511-1 PN, PROFINET IRT, 32 kB process image, Modbus TCP.

$1,081.00 – $2,554.83Ref. price · indicative, final on quote
Siemens 6ES7511-1AK01-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7511-1AK01-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)60 ns
Execution time, word operations (typ.)72 ns
Execution time, floating-point arithmetic (typ.)384 ns
Size, max.16 kbyte
6ES7511-1AK01-0AB0 — I/O
ParameterValue
Input data area32 kbyte; All inputs are in the process image
Output data area32 kbyte; All outputs are in the process image
6ES7511-1AK01-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7511-1AK01-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)0.7 A
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)5.7 W
6ES7511-1AK01-0AB0 — Environmental
ParameterValue
Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)0 °C
Operating temperature, max. (horizontal mounting)60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off
6ES7511-1AK01-0AB0 — Mechanical
ParameterValue
Width35 mm
Height147 mm
Depth129 mm
Weight (approx.)430 g

Product details

The 6ES7511-1AK01-0AB0: Process image is 32 kbyte each for inputs and outputs — enough for a compact machine but not a large plant floor. Built-in PROFINET port handles MRP (Automanager, Manager, Client per IEC 62439-2), LLDP, MRPD when IRT is active, and Modbus TCP. Ladder, FBD, STL, SCL, GRAPH all supported; plus and for temperature and valve control without a separate loop controller. Note: no PROFIsafe on this CPU — safety functions require an external F-CPU or F-modules.

Fieldbus and network integration

Single PROFINET port at 100 Mbps, IRT-capable. Supports DCP, DNS, DHCP, HTTP/HTTPS, SNMP, I&M data (I&M0 to I&M3). MRP Automanager means the CPU can act as ring manager without an external switch — simplifies cabling and reduces component count. Up to four communication modules (CM/CP) can be inserted for expansion to PROFIBUS, additional PROFINET, or Ethernet interfaces.

Width 35 mm, depth 129 mm, height 147 mm — fits a single-wide slot on the S7-1500 backplane. DIN-rail mount. Commissioning features: forcing, diagnosis LEDs (ERROR, MAINT), I&M data for asset tracking.

Frequently asked questions

Does the 6ES7511-1AK01-0AB0 support DCP?

Yes, DCP (Discovery and Configuration Protocol) is supported for PROFINET device configuration.

Does it support DNS?

Yes, DNS is supported for hostname resolution in the network.

What programming languages are available on this CPU?

LAD, FBD, STL, SCL, and GRAPH are all supported.

Is Modbus TCP supported?

Yes, Modbus TCP is supported via the built-in PROFINET port.

What MRP modes does this CPU support?

MRP Automanager, MRP Manager, and MRP Client per IEC 62439-2 Edition 2.0.
