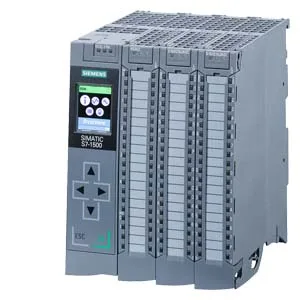

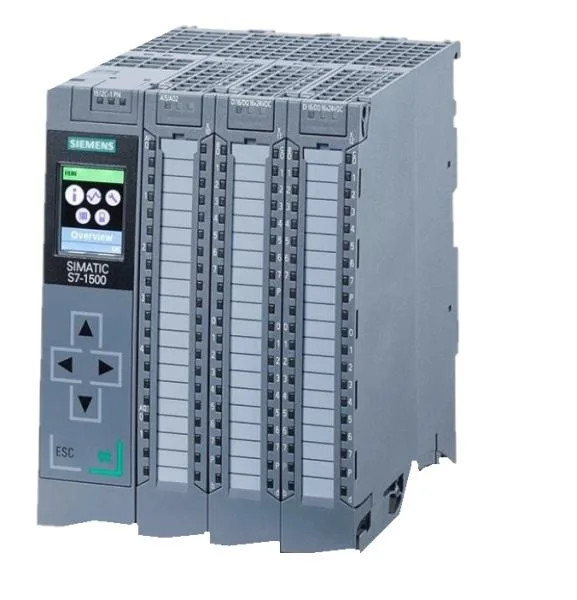

The Siemens 6ES7512-1CK00-0AB0 is a SIMATIC S7-1500 CPU with a 32 kB process image for both inputs and outputs, supporting PROFINET IRT for deterministic communication – the key feature for applications requiring synchronized motion or high-speed control loops. It handles MRP with Automanager per IEC 62439-2 Edition 2.0, and MRPD (requiring IRT) for seamless media redundancy in ring topologies. For legacy or multi-vendor integration, MODBUS TCP is on board alongside standard Ethernet protocols: DCP, DNS, DHCP, SNMP, and LLDP. The integrated web server serves both standard and user-defined pages, and the CPU can accommodate up to 6 communication modules (PROFIBUS, PROFINET, Ethernet) via the backplane.
Programming options cover LAD, FBD, SCL, STL, and GRAPH; the CPU also includes a PID controller with integrated optimization for temperature loops. Forcing and capture functions are available for commissioning. Rated for -40°C to 70°C ambient, this CPU fits into cold storage environments or high-temp panels without derating. Dimensions (WxHxD) are 110 mm x 147 mm x 129 mm, matching the standard S7-1500 footprint.
I/O data are mapped as 32 kbyte inputs and 32 kbyte outputs – all in the process image – which sets the maximum direct I/O capacity without external couplers. The 16 onboard I/O channels (analog or digital?) and analog input support for Pt100 and Ni100 (standard/climate) add local signal handling. I&M data (I&M0 to I&M3) is supported for asset management, and the hardware clock provides time stamping. 100 Mbps Ethernet is the physical layer.
