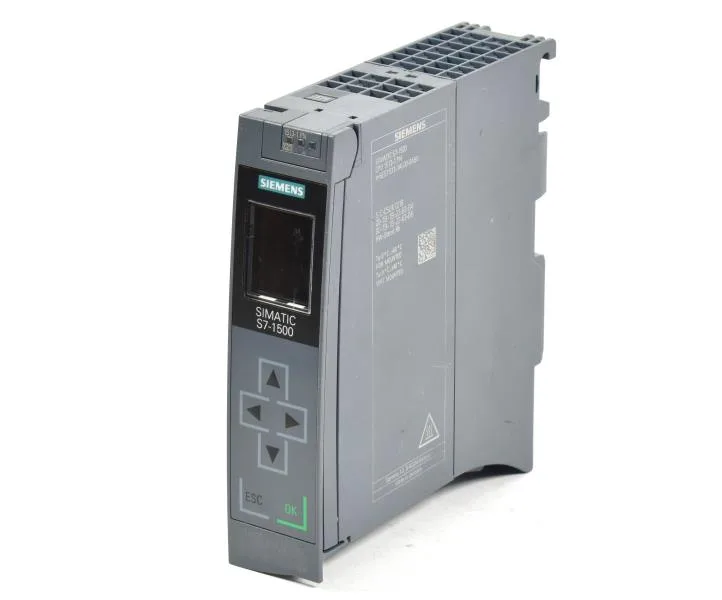

Siemens 6ES7513-1AL00-0AB0 — PLCs (Programmable Logic Controllers)

6ES7513-1AL00-0AB0 Siemens S7-1500 CPU, IRT, MRP, 35mm

MPN6ES7513-1AL00-0AB0

Siemens S7-1500 CPU 6ES7513-1AL00-0AB0, DCP, FBD, IRT, MRP, 35 mm width, 129 mm depth, backup 6 weeks.

$1,858.01Ref. price · indicative, final on quote
Siemens 6ES7513-1AL00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7513-1AL00-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)40 ns
Execution time, word operations (typ.)48 ns
Execution time, floating-point arithmetic (typ.)256 ns
Size, max.16 kbyte
6ES7513-1AL00-0AB0 — I/O
ParameterValue
Input data area32 kbyte; All inputs are in the process image
Output data area32 kbyte; All outputs are in the process image
6ES7513-1AL00-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7513-1AL00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)0.7 A
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)5.7 W
6ES7513-1AL00-0AB0 — Mechanical
ParameterValue
Width35 mm
Height147 mm
Depth129 mm
Weight (approx.)430 g
6ES7513-1AL00-0AB0 — Environmental
ParameterValue
Operating temperature, min. (horizontal mounting)0 °C
Operating temperature, max. (horizontal mounting)60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off

Product details

The 6ES7513-1AL00-0AB0: No PROFIsafe onboard—if your machine requires safe torque-off or safe speed monitoring, a separate F-CPU handles that domain. The hardware clock holds 6 weeks of backup time at 40 °C, so the CPU retains timestamped data across brief power losses without a UPS.

This CPU is quoted to order. The newer -1AL01-0AB0 revision is available as a direct drop-in if the existing firmware version permits—confirm the required TIA Portal version before committing the BOM line. RoHS and CE declarations are standard with Siemens S7-1500 series; specific UL certification can be provided on request.

Frequently asked questions

What are the key specifications of 6ES7513-1AL00-0AB0?

It supports DCP, FBD, SCL, STL, and GRAPH programming; has IRT for deterministic motion; MRP with up to 50 devices; 32 KB inputs and outputs in the process image; a hardware clock with 6-week backup at 40 °C; and a 35 mm width.

Is there a newer version of this CPU?

Yes, the 6ES7513-1AL01-0AB0 is the updated revision. It shares the same footprint and performance but may include firmware refinements. It is a direct functional replacement.

Does this CPU support PROFIsafe?

No, PROFIsafe is not supported. Safety functions require a separate F-CPU.

What is the physical size of 6ES7513-1AL00-0AB0?

Width 35 mm, height 147 mm, depth 129 mm. Fits standard S7-1500 DIN-rail mounting.
