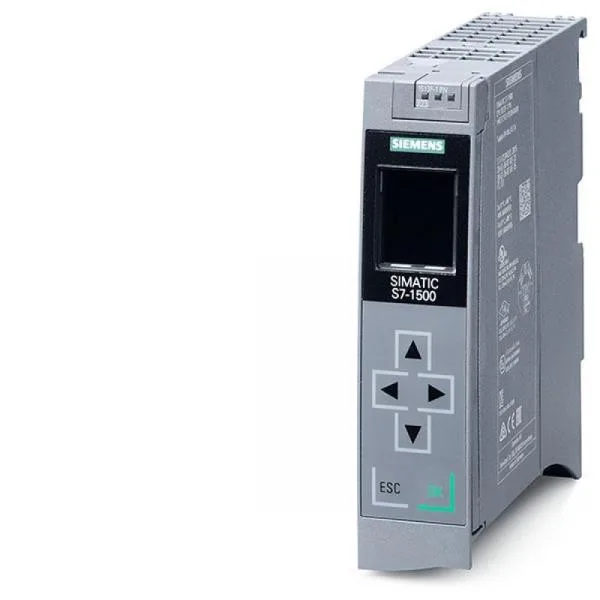

The 6ES7513-1FL01-0AB0: Process image allocation: 32 kbyte for all inputs and 32 kbyte for all outputs are mapped in the process image, giving predictable read/write timing for control loops and interlocks. Supports LAD, FBD, SCL, STL, and GRAPH programming languages; failsafe logic is handled in LAD and FBD with dedicated safety blocks. Onboard PROFINET interface with two ports supports IRT for isochronous real-time communication and MRP (Media Redundancy Protocol) including MRP Automanager per IEC 62439-2 Edition 2.0, MRP Manager, and MRP Client. MRPD is available with IRT requirement.
Sourcing & lifecycle posture
The operating temperature range of -40 to 70 °C covers freezer-floor, outdoor cabinet, and high-ambient panel environments without forced cooling. I²t rating of 0.02 A²·s gives a sense of internal dissipation limits during short startup surges.
Integration & mounting
Width 35 mm, height 147 mm, depth 129 mm; mounts on a 35 mm DIN rail. Hardware clock timestamps for diagnostics. Up to six communication modules (PROFINET + PROFIBUS) can be inserted in total, offering flexible fieldbus integration for modbus TCP, PROFIBUS, or additional PROFINET lines.
Communication & protocol support
Standard communication includes TCP/IP, UDP, MODBUS TCP, DHCP, DNS, SNMP, LLDP, and HTTP/HTTPS with standard and user pages. The module also supports DCP for device discovery and I&M data (I&M0 to I&M3) for asset management. Forcing is supported on digital outputs and inputs, but limited to non-failsafe channels only — failsafe outputs cannot be forced by design.
