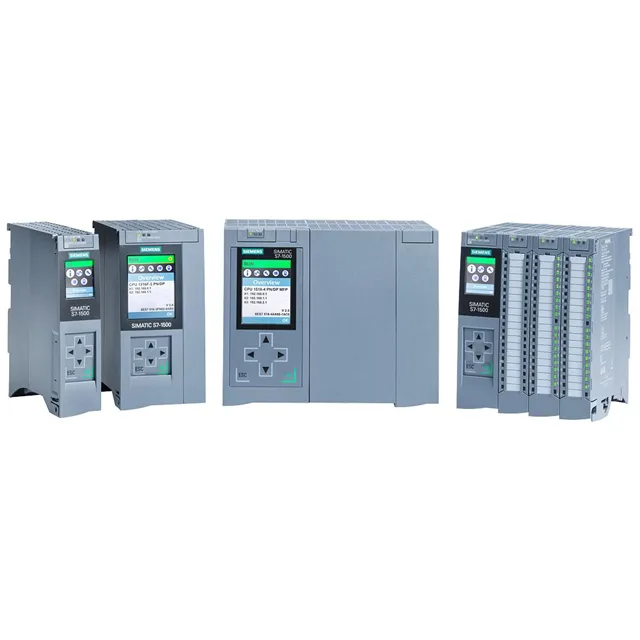

Siemens 6ES7513-1FL02-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7513-1FL02-0AB0 CPU, Failsafe, -40..70°C

MPN6ES7513-1FL02-0AB0

Active

Siemens SIMATIC S7-1500 CPU 6ES7513-1FL02-0AB0, fail-safe processor for medium applications, -40 to 70°C, PROFINET with IRT, MRP, PROFIsafe V2.4/V2.6.

$1,397.00 – $3,704.38Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7513-1FL02-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7513-1FL02-0AB0 — Processor & Memory
Parameter	Value
Execution time, bit operations (typ.)	40 ns
Execution time, word operations (typ.)	48 ns
Execution time, floating-point arithmetic (typ.)	256 ns
Size, max.	16 kbyte

6ES7513-1FL02-0AB0 — I/O
Parameter	Value
Input data area	32 kbyte; All inputs are in the process image
Output data area	32 kbyte; All outputs are in the process image

6ES7513-1FL02-0AB0 — Programming
Parameter	Value
Programming language: FBD	Yes; incl. failsafe
Programming language: LAD	Yes; incl. failsafe
Programming language: SCL	Yes

6ES7513-1FL02-0AB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Current consumption (rated)	0.7 A
Permissible range, lower limit (DC)	19.2 V
Permissible range, upper limit (DC)	28.8 V
Power loss (typ.)	5.7 W

6ES7513-1FL02-0AB0 — Environmental
Parameter	Value
Installation altitude, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Temperature, min.	-40 °C
Temperature, max.	70 °C
Operating temperature, min. (horizontal mounting)	-25 °C; No condensation
Operating temperature, max. (horizontal mounting)	60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off

6ES7513-1FL02-0AB0 — Mechanical
Parameter	Value
Width	35 mm
Height	147 mm
Depth	129 mm
Weight (approx.)	405 g

Product details

Fail-safe CPU with wide temperature range and deterministic networking

Process image holds 32 kByte each for inputs and outputs — all I/O ends up in the image without manual mapping. PROFINET interface supports IRT for deterministic motion control, MRP (Automanager and Client) for media redundancy, and MRPD (requires IRT) for seamless redundancy. Up to six communication modules total (PROFINET + PROFIBUS) can be added. Hardware clock, I&M data 0 to 3 for asset tracking, and DNS/DCP for network configuration. Forcing is supported but only in non-fail-safe mode — keep that in mind if you need forced values in standard logic during commissioning.
