Siemens 6ES7515-2AM02-0AB0 provides a 32 kbyte input process image and a 32 kbyte output process image. It runs MRP automanager per IEC 62439-2, so a redundant ring topology can be set up without an external MRP switch. Two PID controllers are built in — one for temperature loops (PID-Temp) and one for valve positioning — eliminating the need for a separate controller on those common applications. Rated for -40 to 70 °C ambient, which covers unheated warehouses or enclosures near process heat. Up to eight communication modules (PROFIBUS, PROFINET, Ethernet) can be added via the rack, covering MODBUS TCP as well. Includes ERROR and MAINT LEDs for quick on-site fault indication, plus I&M data up to I&M3 for asset tracking.

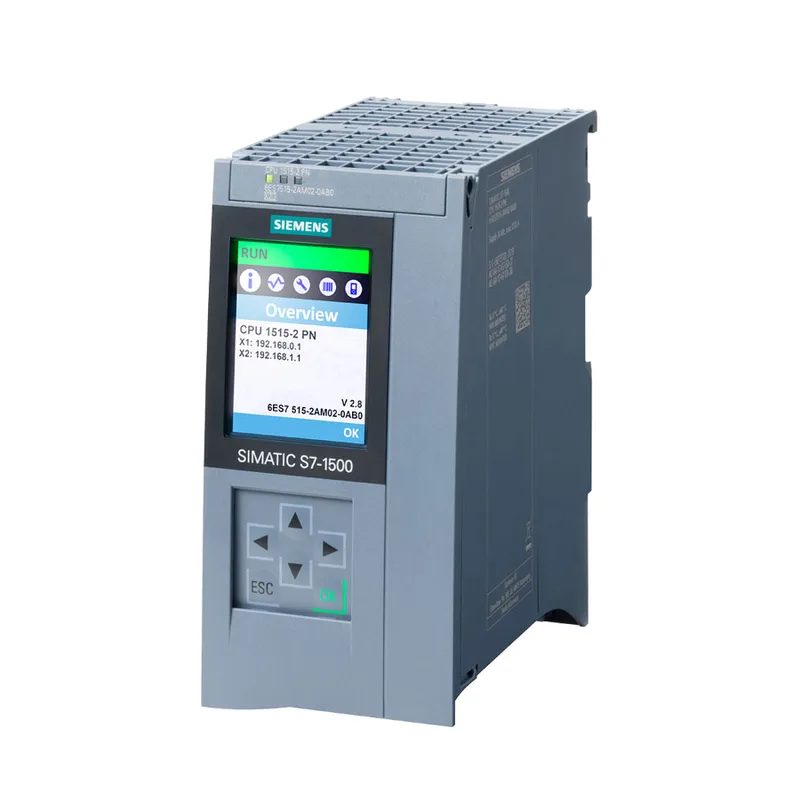

Siemens 6ES7515-2AM02-0AB0 CPU 1515-2 PN, MRP, PID
MPN6ES7515-2AM02-0AB0
Siemens SIMATIC S7-1500, CPU 1515-2 PN, order code 6ES7515-2AM02-0AB0, MRP automanager, PID control, -40 to 70 °C.
$2,106.00 – $2,376.30Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 30 ns |
| Execution time, word operations (typ.) | 36 ns |
| Execution time, floating-point arithmetic (typ.) | 192 ns |
| Size, max. | 16 kbyte |
I/O
| Parameter | Value |
|---|---|
| Input data area | 32 kbyte; All inputs are in the process image |
| Output data area | 32 kbyte; All outputs are in the process image |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 0.8 A |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 6.3 W |
Environmental
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | -25 °C; No condensation |
| Operating temperature, max. (horizontal mounting) | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
Mechanical
| Parameter | Value |
|---|---|
| Width | 70 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight (approx.) | 830 g |
Product details
MPN
6ES7515-2AM02-0AB0
