Siemens 6ES7515-2FN03-0AB0 — PLCs (Programmable Logic Controllers)

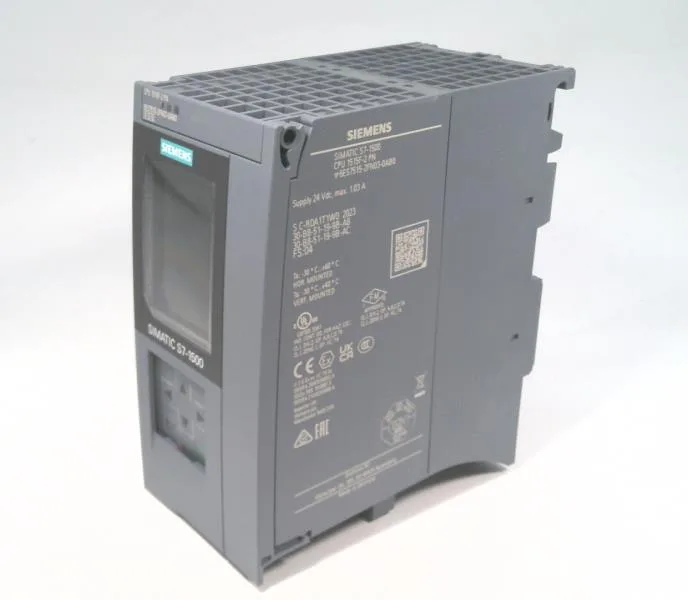

Siemens 6ES7515-2FN03-0AB0 CPU 1515F-2 PN, failsafe

MPN6ES7515-2FN03-0AB0
Active

Siemens SIMATIC S7-1500 CPU 1515F-2 PN, 6ES7515-2FN03-0AB0, failsafe controller with PROFIsafe V2.4/V2.6, 32 kB process image each I/O, MRP Automanager, -40 to 70 °C.

$1,874.52 – $4,396.53Ref. price · indicative, final on quote
Siemens 6ES7515-2FN03-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7515-2FN03-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)6 ns
Execution time, word operations (typ.)7 ns
Execution time, floating-point arithmetic (typ.)37 ns
Size, max.16 kbyte
6ES7515-2FN03-0AB0 — I/O
ParameterValue
Input data area32 kbyte; All inputs are in the process image
Output data area32 kbyte; All outputs are in the process image
6ES7515-2FN03-0AB0 — Programming
ParameterValue
Programming language: FBDYes; incl. failsafe
Programming language: LADYes; incl. failsafe
Programming language: SCLYes
6ES7515-2FN03-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)0.83 A
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)7.9 W
6ES7515-2FN03-0AB0 — Environmental
ParameterValue
Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)-30 °C; No condensation
Operating temperature, max. (horizontal mounting)60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off
6ES7515-2FN03-0AB0 — Mechanical
ParameterValue
Width70 mm
Height147 mm
Depth129 mm
Weight (approx.)456 g

Product details

Failsafe CPU for safety-critical lines

The Siemens 6ES7515-2FN03-0AB0 is a failsafe CPU — it runs standard and safety logic on the same processor, with LAD and FBD both supporting failsafe blocks. PROFIsafe V2.4/V2.6 is built in, so you can wire safety I/O directly to the backplane without a separate safety controller. The process image handles 32 kbyte each for inputs and outputs — enough to map a medium-sized safety zone with distributed I/O racks without forcing a second CPU.

Network redundancy and media protocols

Supports MRP Automanager per IEC 62439-2 Edition 2.0, plus MRPD — but MRPD requires IRT, which this CPU does not offer natively. If you need isochronous real-time motion, you will need a different CPU variant. Ethernet stack is full: TCP/IP, UDP, DHCP, DNS, LLDP, SNMP, HTTP/HTTPS with custom user pages, and MODBUS TCP. No fieldbus module needed for basic plant-floor connectivity.

DIN-rail footprint and expansion

Up to 8 communication modules (PROFIBUS, PROFINET, Ethernet) can be inserted via the left-side expansion slots. The backplane supplies power; no separate CM power supply needed.

Frequently asked questions

Is the Siemens 6ES7515-2FN03-0AB0 a failsafe CPU?

Yes. It supports failsafe LAD and FBD programming, and integrates PROFIsafe V2.4/V2.6 for safety I/O communication. Standard and safety logic run on the same processor.

What is the program and data memory of 6ES7515-2FN03-0AB0?

The process image is 32 kbyte each for inputs and outputs. The CPU uses an external SIMATIC Memory Card for user program and data storage — the card size determines the available memory.

Can 6ES7515-2FN03-0AB0 be used with PROFINET IRT?

No. This CPU does not support IRT natively. It supports MRP and MRPD, but MRPD requires IRT — so MRPD is not available on this model. For isochronous real-time applications, select a CPU with IRT support.

What is the difference between 6ES7515-2FN03-0AB0 and 6ES7515-2AN03-0AB0?

The 2FN03-0AB0 is the failsafe variant with PROFIsafe built in. The 2AN03-0AB0 is the standard (non-failsafe) CPU. Both share the same form factor and process image size, but the failsafe version adds safety logic execution and PROFIsafe communication.

How can I order the Siemens 6ES7515-2FN03-0AB0?

This CPU is sourced to order against your RFQ. Availability and pricing are confirmed at quote time.
