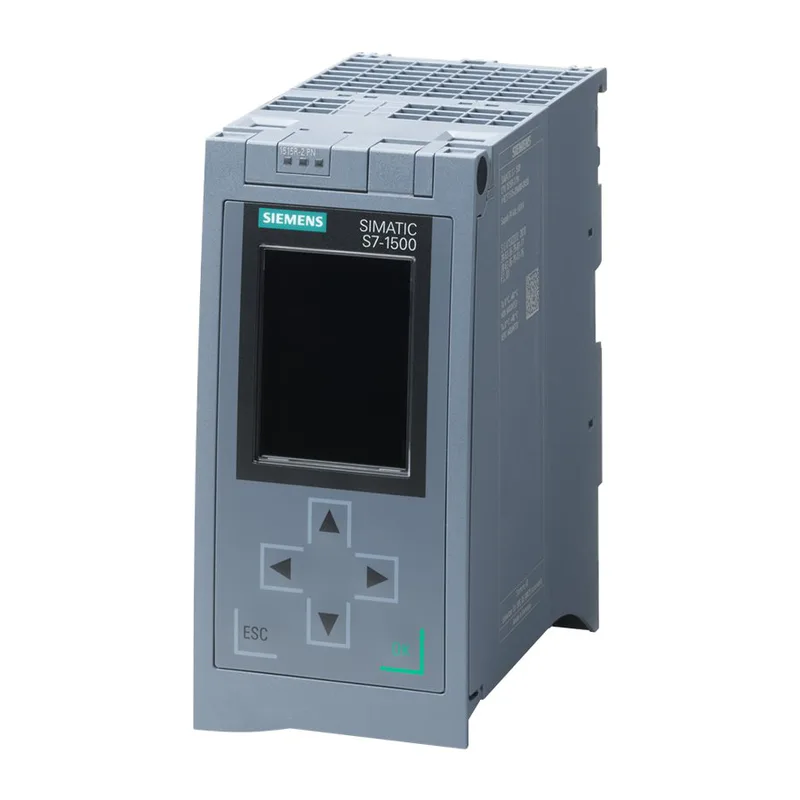

Siemens SIMATIC S7-1500 CPU 1515-2 PN, 6ES7515-2RM00-0AB0, -40... 70 °C, 32 kB I/O, MRP, MODBUS TCP.
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 60 ns |
| Execution time, word operations (typ.) | 72 ns |
| Execution time, floating-point arithmetic (typ.) | 384 ns |
| Size, max. | 16 kbyte |
| Parameter | Value |
|---|---|
| Input data area | 32 kbyte; All inputs are in the process image |
| Output data area | 32 kbyte; All outputs are in the process image |
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 0.8 A |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 6.3 W |
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | 0 °C |
| Operating temperature, max. (horizontal mounting) | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
| Parameter | Value |
|---|---|
| Width | 70 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight (approx.) | 830 g |
The 6ES7515-2RM00-0AB0: The process image handles 32 kbyte inputs and 32 kbyte outputs, enough for pitch control, yaw drives, and the converter interface without rack expansion. MRP Automanager per IEC 62439-2 Edition 2.0 lets you build a PROFINET ring that survives a single cable break or switch failure — common up-tower where vibration loosens connectors. MODBUS TCP support ties in legacy SCADA gateways without an extra protocol converter.
No, the 6ES7515-2RM00-0AB0 does not support CFC (Continuous Function Chart) programming. LAD, FBD, STL, SCL, and GRAPH are supported instead.
Yes, the 6ES7515-2RM00-0AB0 supports DCP (Discovery and Configuration Protocol) for network identification and configuration.
