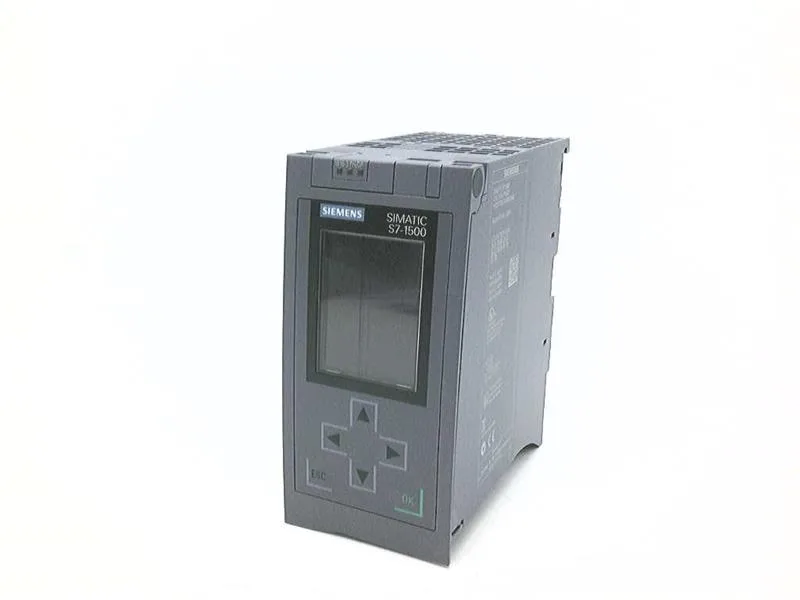

The Siemens 6ES7516-3AN00-0AB0 is a CPU of the S7-1500 generation designed for mid-range control tasks. It includes one onboard I/O module (integrated, 1) and supports MRP as a redundancy manager for rings of up to 50 devices.
What the key ratings mean
MRP redundancy manager capability means this CPU can build failover media rings without a separate switch, handling up to 50 participants. IRT is supported for deterministic motion and high-speed I/O. DCP (Discovery and Configuration Protocol) enables automatic address assignment and topology detection over PROFINET, reducing commissioning wiring checks. The I²t rating of 0.02 A²·s is the internal power supply's short-circuit energy withstand — relevant for power budget and protection coordination calculations. Process image for inputs and outputs is 32 kbyte each, setting the cyclic data volume the CPU exchanges with distributed I/O each bus cycle. The web server supports standard and user-defined HTTP/HTTPS pages. Programming languages include LAD, FBD, STL, SCL, and GRAPH; motion control is via integrated technology objects.
Integration and mounting
Width 70 mm, height 147 mm, depth 129 mm. Up to 8 CM/CP modules can be inserted side-by-side. A dedicated MAINT LED is present for preventive maintenance indication; the ERROR LED signals bus faults or runtime errors. Communication interfaces: PROFINET (IRT, MRP), PROFIBUS via DP port, RS485, MODBUS TCP, and UDP. The CPU itself does not support DHCP; address configuration uses fixed IP or DCP.
S7 routing is supported, which allows access to remote CPUs through the PROFINET backbone without extra gateways. Size of the retentive memory is 16 kbyte, suitable for storing recipe or alarm data across power cycles. The built-in PID controller with integrated optimization handles temperature and valve loops without an external module.
