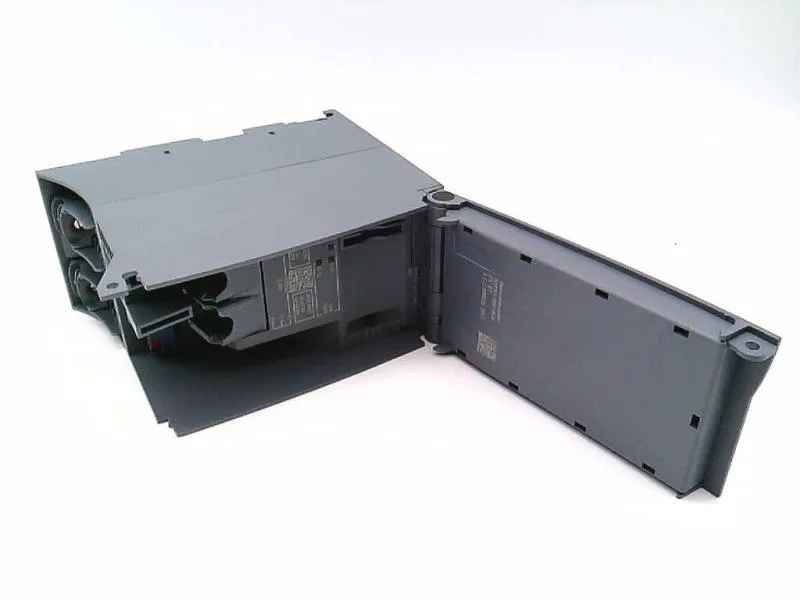

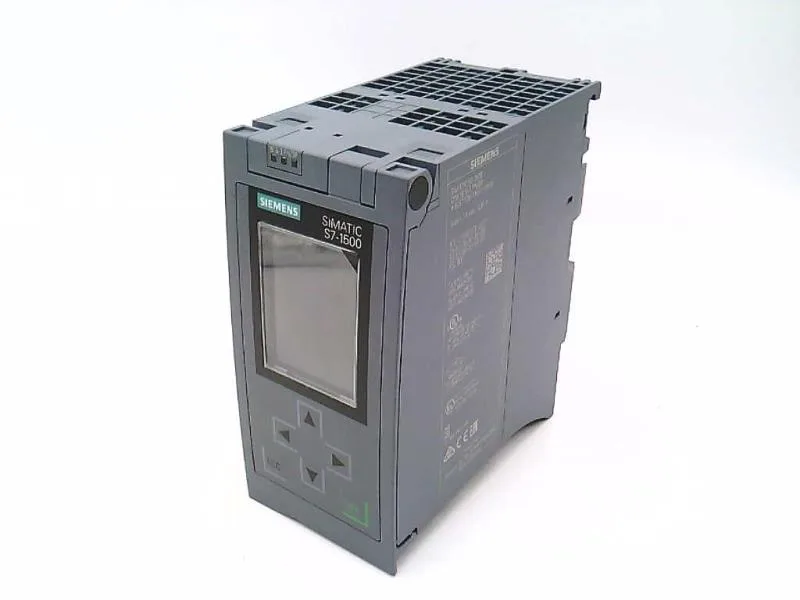

Siemens 6ES7516-3AN01-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7516-3AN01-0AB0 CPU 1516-3, MRP, MODBUS

MPN6ES7516-3AN01-0AB0

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP, 6ES7516-3AN01-0AB0, MRP automanager per IEC 62439-2, MODBUS TCP, -40 to 70 °C.

$3,810.00Ref. price · indicative, final on quote
Siemens 6ES7516-3AN01-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7516-3AN01-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)10 ns
Execution time, word operations (typ.)12 ns
Execution time, floating-point arithmetic (typ.)64 ns
Size, max.16 kbyte
6ES7516-3AN01-0AB0 — I/O
ParameterValue
Input data area32 kbyte; All inputs are in the process image
Output data area32 kbyte; All outputs are in the process image
6ES7516-3AN01-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7516-3AN01-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)0.85 A
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)7 W
6ES7516-3AN01-0AB0 — Environmental
ParameterValue
Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)0 °C
Operating temperature, max. (horizontal mounting)60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off
6ES7516-3AN01-0AB0 — Mechanical
ParameterValue
Width70 mm
Height147 mm
Depth129 mm
Weight (approx.)845 g

Product details

Key features

The 6ES7516-3AN01-0AB0: MRP automanager delivers ring redundancy without external switches, suitable for high-availability line cells. MODBUS TCP enables straightforward integration with third-party HMIs, drives, and SCADA. The CPU also supports PROFINET IRT and MRPD (with IRT requirement), UDP, DHCP, LLDP, SNMP, and HTTP/HTTPS with standard and user pages. The wide temperature range (-40 to 70 °C) and 129 mm depth, 70 mm width, 147 mm height make it suitable for panel-mount in unheated enclosures. Backplane bus supplies up to 32 kbyte of input and output process image each. Programming languages include LAD, FBD, SCL, STL, GRAPH. PID-Temp and controllers with integrated optimization are built-in for temperature and valve control loops.

Frequently asked questions

Does the 6ES7516-3AN01-0AB0 support MRP ring redundancy?

Yes, it supports MRP automanager according to IEC 62439-2 Edition 2.0, as well as MRP Manager and MRP Client.

What is the operating temperature range?

The CPU is rated for -40 to 70 °C ambient.

What is the I²t value listed?

0.02 A²·s.
