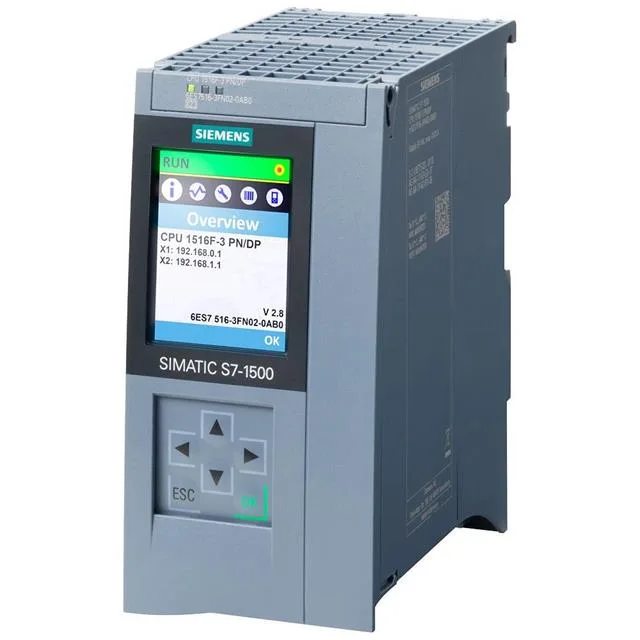

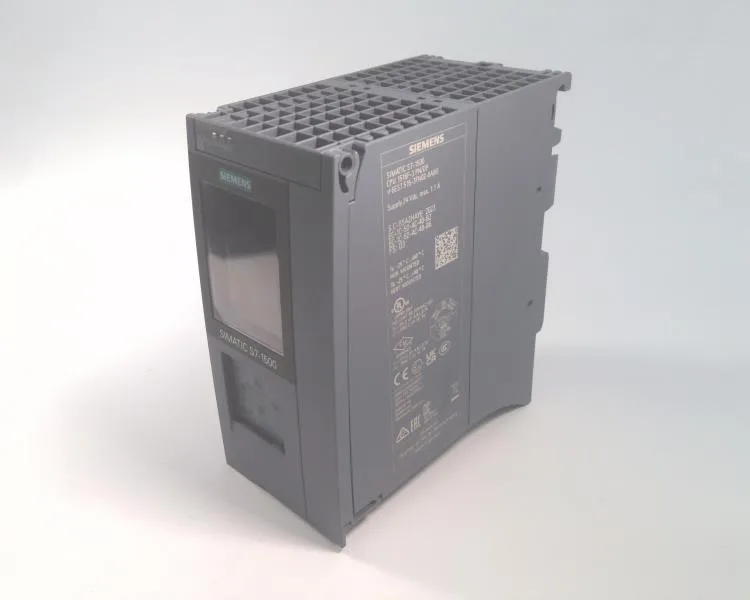

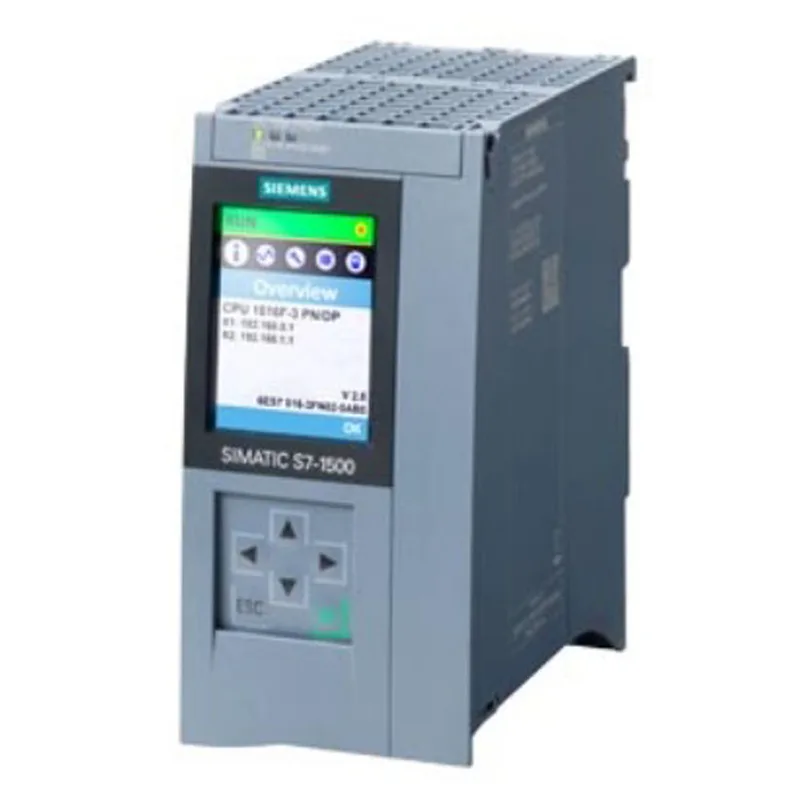

CPU 1516F-3 PN/DP – safety controller for the line
The 6ES7516-3FN02-0AB0: It supports DCP and DNS for immediate PROFINET network configuration and name resolution out of the box. MRP (Media Redundancy Protocol) is built in, with MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager, and MRP Client – no extra module needed for line or ring topologies. Rated for -40 °C to 70 °C ambient, so it can live in a warm cabinet or a cold warehouse without auxiliary climate control.
Process image, integrated PID, and commissioning tools
The process image handles 32 kbyte each for inputs and outputs, all mapped directly into the CPU – no backplane bottleneck for medium I/O counts. Programming languages include LAD, FBD, STL, SCL, GRAPH – all available in TIA Portal. FBD and LAD both include failsafe blocks for safety logic. Two PID controllers are integrated: with optimized pre-tuned loop for temperature, and for valve positioning. Each can handle up to 40 probes per controller.
DIN-rail footprint and connections
The housing measures 70 mm wide, 147 mm high, and 129 mm deep. Front ports: two PROFINET interfaces (100 Mbps), one RS-485 (X3) for point-to-point or DP, and space for up to 8 communication modules (CM/CP) including PROFIBUS or additional Ethernet. Error and maintenance LEDs are present on the front bezel – no need to pull the module to check status.
