Siemens 6ES7517-3FP00-0AB0 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 2 ns |
| Execution time, word operations (typ.) | 3 ns |
| Execution time, floating-point arithmetic (typ.) | 12 ns |
| Size, max. | 16 kbyte |
| Parameter | Value |
|---|---|
| Input data area | 32 kbyte; All inputs are in the process image |
| Output data area | 32 kbyte; All outputs are in the process image |
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes; incl. failsafe |
| Programming language: LAD | Yes; incl. failsafe |
| Programming language: SCL | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 1.55 A |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 24 W |
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | 0 °C |
| Operating temperature, max. (horizontal mounting) | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
| Parameter | Value |
|---|---|
| Width | 175 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight (approx.) | 1 978 g |

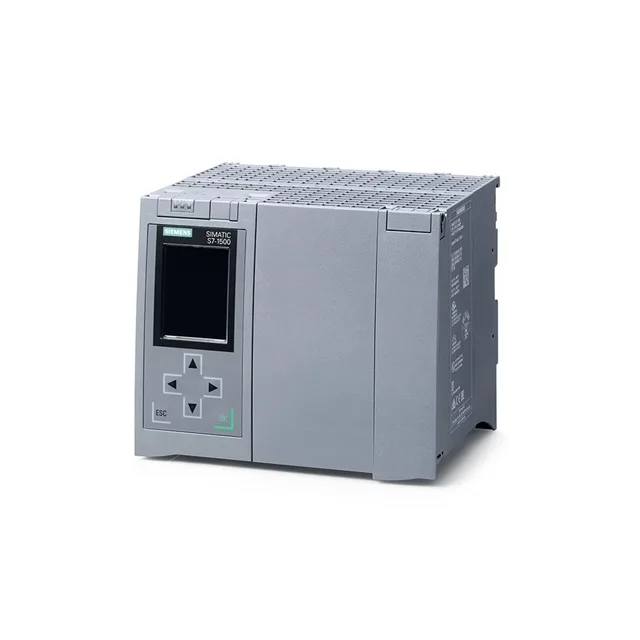

The 6ES7517-3FP00-0AB0 is a Siemens SIMATIC S7-1500 CPU 1517F-3 PN/DP with a 32 kbyte input and 32 kbyte output process image, supporting Ethernet, MODBUS TCP, and RS485 (X3). It draws 24.0 W, measures 175 x 147 x 129 mm, weighs 1978 g, and is RoHS compliant since 21-07-14.
RoHS compliance is confirmed since 21-07-14, meeting EU material restrictions for new installations.
