CPU 1518-4 PN/DP – safety-rated controller for high-end automation

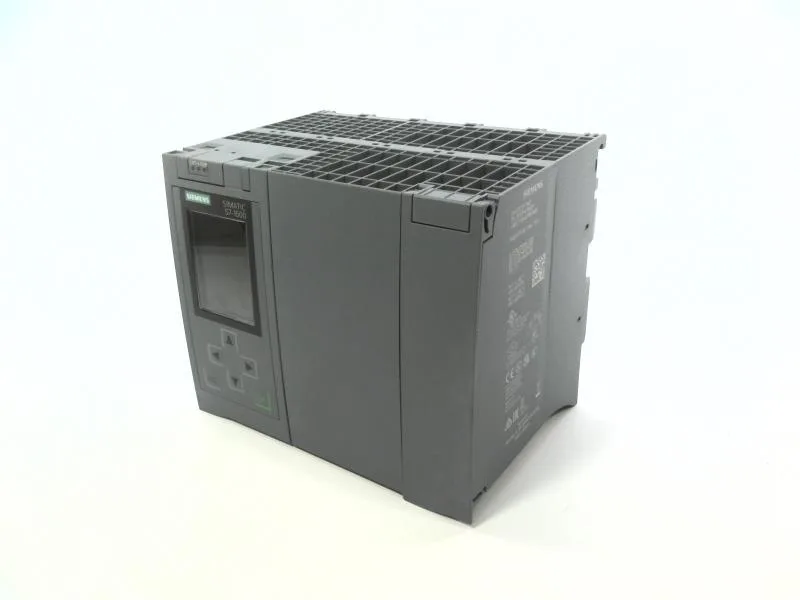

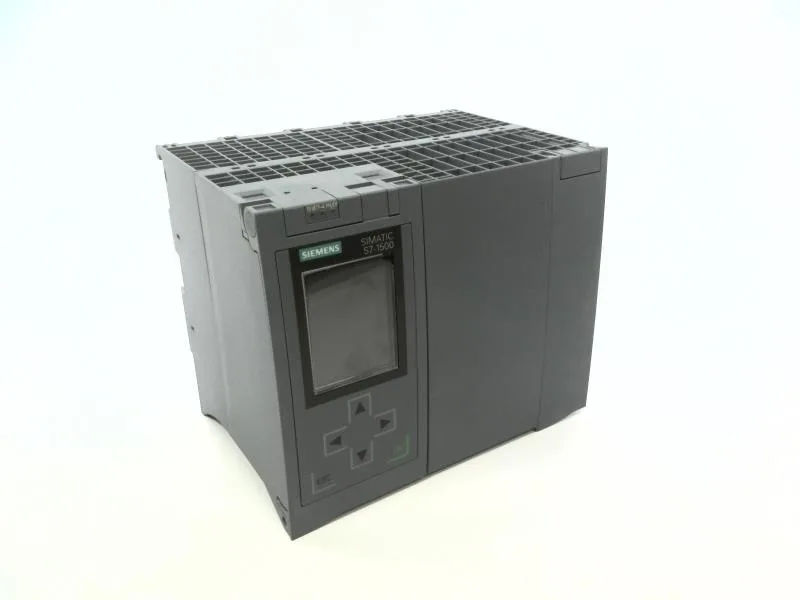

The Siemens 6ES7518-4UP00-0AB0 CPU 1518-4 PN/DP supports FBD and LAD including failsafe, and PROFIsafe safety communication. MRP is supported as manager and client per IEC 62439-2 Edition 2.0, but MRPD (Media Redundancy for Planned Duplication) requires IRT—and this CPU does not support IRT. That means MRPD is not usable here. Rated for -40 to 70 °C ambient, so it's suitable for unheated cabinets or outdoor-adjacent installs. Backplane power is drawn from the rack; no separate power supply needed.
Integration notes – DIN placement and network constraints

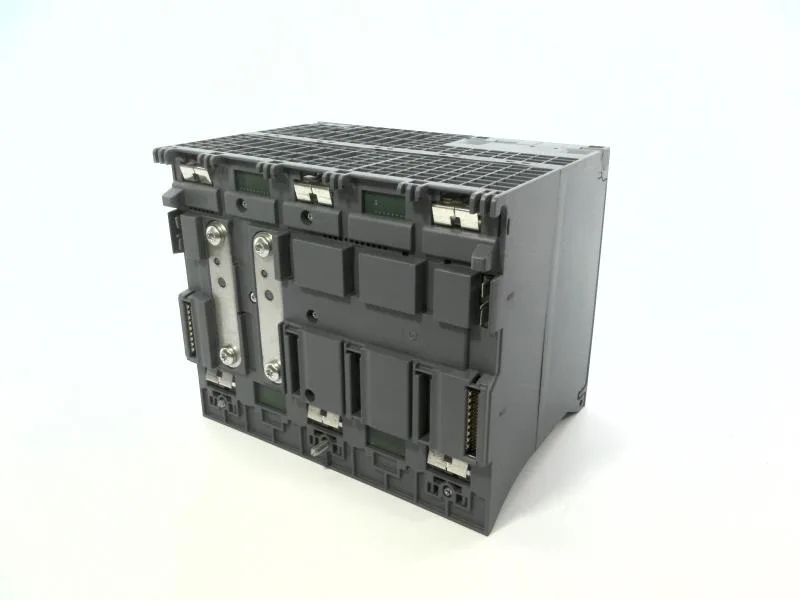

Footprint is 175 x 147 x 129 mm (W x H x D). Mounts on the DIN rail with the base unit; no extra spacing required for heatsinking at 70 °C. The 1 Gbps Ethernet is only available at the X3 interface of the CPU 1518—other ports are 100 Mbps. If your PROFINET ring needs gigabit, plan that segment through X3. Up to 8 communication modules (CM/CP) for PROFIBUS, PROFINET, or Ethernet can be added. Process image is 32 kbyte each for inputs and outputs.
Sourcing – quoted to order against your BOM line
This CPU is sourced through our multi-supplier network. No official lifecycle status is available, so we quote each order against current supply. Submit an RFQ for lead time and pricing. If you're evaluating an alternate MPN like 6ES7517-3UP00-0AB0, note this CPU adds a wider temperature range and built-in and controllers—worth checking if your design can leverage those without an extra loop module.
