Siemens 6ES7522-1BF00-0AB0 — Digital Output Modules

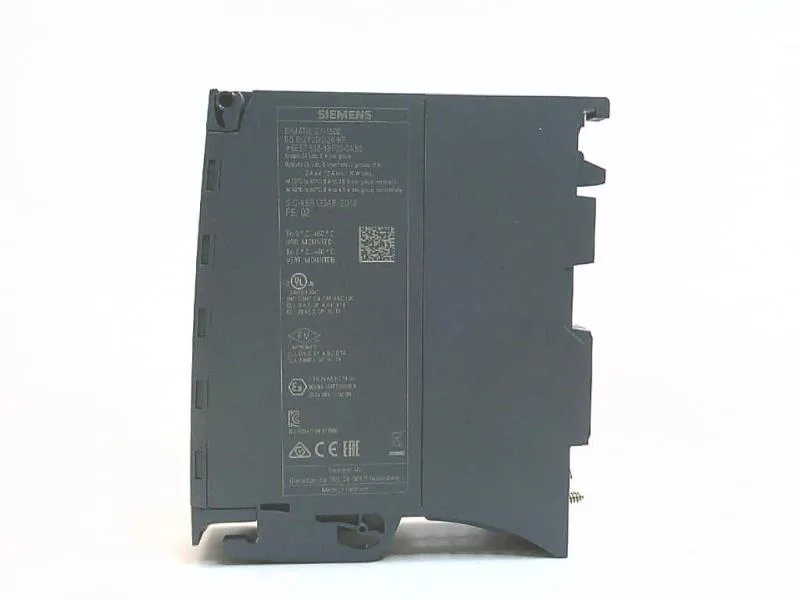

Siemens 6ES7522-1BF00-0AB0 S7-1500 DQ 8x24VDC, PWM, diagnost

MPN6ES7522-1BF00-0AB0
Active

Siemens S7-1500 digital output module, 6ES7522-1BF00-0AB0, 8-channel 24 V DC with DQ, MSO, and PWM capability (two outputs at max. 500 Hz).

$134.15Ref. price · indicative, final on quote
Siemens 6ES7522-1BF00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7522-1BF00-0AB0 — Outputs
ParameterValue
Digital outputs8
Output typeTransistor
6ES7522-1BF00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.100 Hz; With PWM operation: 500 Hz
Output current at signal "1" (rated)2 A
Output current, max. per circuit / per module2.4 A; note derating specification for PWM operation
Total output current per module, max.16 A; see additional description in the manual
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Output voltage at signal "1" (min.)L+ (-0.8 V)
Residual current at signal "0", max.0.5 mA
Power dissipation (typ.)5.6 W; 6.8 W for PWM operation
Inductive shutdown voltage clamp-17 V
Load resistance, upper limit4 kΩ
Load resistance, lower limit12 Ω
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation, channels in groups of4
Isolation test voltage707 V DC (type test)
6ES7522-1BF00-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes; through internal protection with 10 A per group
Diagnostics functionYes
Diagnostic alarmYes
Short-circuit response threshold (typ.)3 A
Short-circuit detectionYes
Wire-break detectionNo
Redundant load controlYes
Output can drive a digital inputYes
6ES7522-1BF00-0AB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.100 µs
Output switching delay 1 to 0, max.500 µs
Switching frequency, inductive load, max.0.5 Hz; According to IEC 60947-5-1, DC-13; max. 500 Hz with PWM operation only with external circuit; see additional description in the manual
Switching frequency, lamp load, max.10 Hz
6ES7522-1BF00-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width35 mm
Height147 mm
Depth129 mm
Weight (approx.)240 g

Product details

The 6ES7522-1BF00-0AB0: Eight-channel 24 V DC output for S7-1500; DQ and MSO both listed as yes — discrete output plus motion-synchronous output support. PWM on two channels at max 500 Hz, but requires firmware V2.1.0 or higher and FS02 hardware revision. Switching on typ. 80 µs, off typ. 300 µs — fast enough for typical logic loops but not for sub-millisecond counter or encoder replacement. Load range 12 Ω to 4 kΩ, short-circuit proof, group error and diagnostic alarm available.

Integration Notes

Width 35 mm, depth 129 mm, height 147 mm — fits standard S7-1500 profile rail, occupies one slot. Power loss typ. 5.6 W, 6.8 W under PWM operation; ensure adequate ventilation in dense builds.

Frequently asked questions

What does DQ and MSO mean on this module?

DQ (Digital Output) and MSO (Motion Synchronous Output) are both supported, enabling standard discrete control and synchronized output for simple motion applications.

Can this module output PWM?

Yes, two channels can operate at max 500 Hz PWM, but only with firmware version V2.1.0 or higher and hardware revision FS02.
