Siemens 6ES7522-1BL10-0AA0 — Digital Output Modules

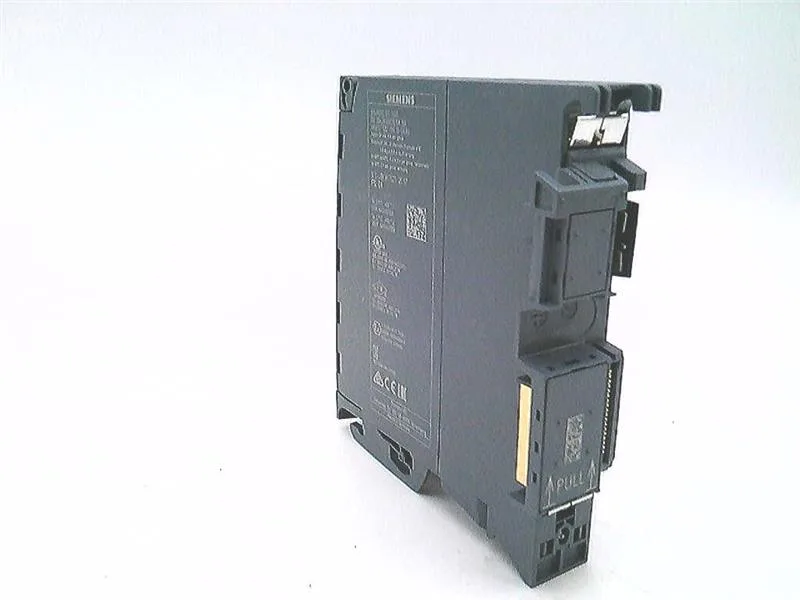

Siemens 6ES7522-1BL10-0AA0 S7-1500 DO Module, 24V DC, 25mm

MPN6ES7522-1BL10-0AA0

Active

Siemens S7-1500 digital output module, 6ES7522-1BL10-0AA0, DQ Yes, MSO Yes, 24 V DC, 25 mm width, supplied with 40-pole push-in front connectors. SIL2 rated, 3.8 W power loss.

$276.86Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7522-1BL10-0AA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7522-1BL10-0AA0 — Outputs
Parameter	Value
Digital outputs	32
Output type	Transistor

6ES7522-1BL10-0AA0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Output current, resistive load, max.	100 Hz
Output current at signal "1" (rated)	0.5 A
Output current, max. per circuit / per module	0.5 A
Total output current per module, max.	16 A; see additional description in the manual
Permissible range, upper limit (DC)	28.8 V
Permissible range, lower limit (DC)	19.2 V
Output voltage at signal "1" (min.)	L+ (-0.8 V)
Residual current at signal "0", max.	0.5 mA
Power dissipation (typ.)	3.8 W
Inductive shutdown voltage clamp	L+ (-53 V)
Load resistance, upper limit	12 kΩ
Load resistance, lower limit	48 Ω
Isolation between channels	No
Isolation between channels and backplane bus	Yes
Isolation, channels in groups of	8
Isolation test voltage	707 V DC (type test)

6ES7522-1BL10-0AA0 — Protection & Diagnostics
Parameter	Value
Short-circuit protection	Yes
Reverse polarity protection	Yes; through internal protection with 7 A per group
Diagnostics function	No
Diagnostic alarm	No
Short-circuit response threshold (typ.)	1 A
Short-circuit detection	No
Wire-break detection	No
Redundant load control	Yes
Output can drive a digital input	Yes

6ES7522-1BL10-0AA0 — Performance
Parameter	Value
Output switching delay 0 to 1, max.	100 µs
Output switching delay 1 to 0, max.	500 µs
Switching frequency, inductive load, max.	0.5 Hz; According to IEC 60947-5-1, DC-13
Switching frequency, lamp load, max.	10 Hz

6ES7522-1BL10-0AA0 — Environmental
Parameter	Value
Operating temperature, horizontal mount, max.	60 °C
Operating temperature, horizontal mount, min.	-30 °C; from FS04

6ES7522-1BL10-0AA0 — Mechanical & Connection
Parameter	Value
Cable length, unshielded, max.	600 m
Cable length, shielded, max.	1 000 m
Width	25 mm
Height	147 mm
Depth	129 mm
Weight (approx.)	280 g

Product details

The 6ES7522-1BL10-0AA0: At 25 mm wide and 129 mm deep, it fits the standard S7-1500 rack and leaves adjacent slots free for I/O or communication modules. SIL 2 rated.

The module occupies one slot on the S7-1500 rail. The 40-pole push-in connectors accept wire sizes typical for digital outputs; terminals are clearly marked for channel assignment. Firmware version V1.0.0, HW functional status from FS01. FW can be updated in the field via TIA Portal. No isochronous mode, but prioritized startup is supported. Green RUN LED and red ERROR LED provide on-module status; no per-channel diagnostics.

Lifecycle stage is current — no end-of-life or last-time-buy notices. Suitable for new designs and as a spare for existing S7-1500 installations.
