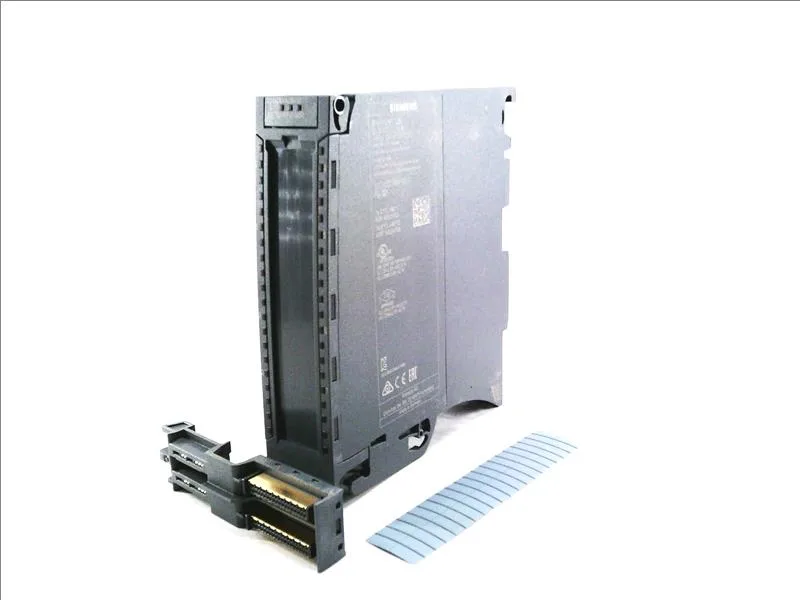

The Siemens 6ES7522-5FF00-0AB0 is an 8-channel Triac digital output module for the S7-1500 system, rated for 2 A per group and supporting both DQ (DO) and MSO (Momentary Short Overload). This means it can drive AC loads like contactors and valves directly, and the MSO function lets it ride through brief short-circuit conditions without tripping—handy on lines that see occasional inrush spikes.
Key ratings & what they mean
Triac outputs with a 2 A per group limit: if you’re running multiple outputs from one group, keep the total draw under 2 A. Each output is protected by a built-in 6.3 A slow-blow fuse—fast enough to clear a hard short but forgiving on motorized loads. DQ and MSO are standard for this S7-1500 family: DQ gives you the basic on/off control, MSO adds a configurable overload window. No isochronous mode or oversampling, so it’s a straightforward workhorse module for standard logic links. The module pulls 10.8 W typical, fits a 35 mm DIN-rail slot, and has a depth of 129 mm — standard one-unit width for the S7-1500 backplane.
