Siemens 6ES7522-5FH00-0AB0 — Digital Output Modules

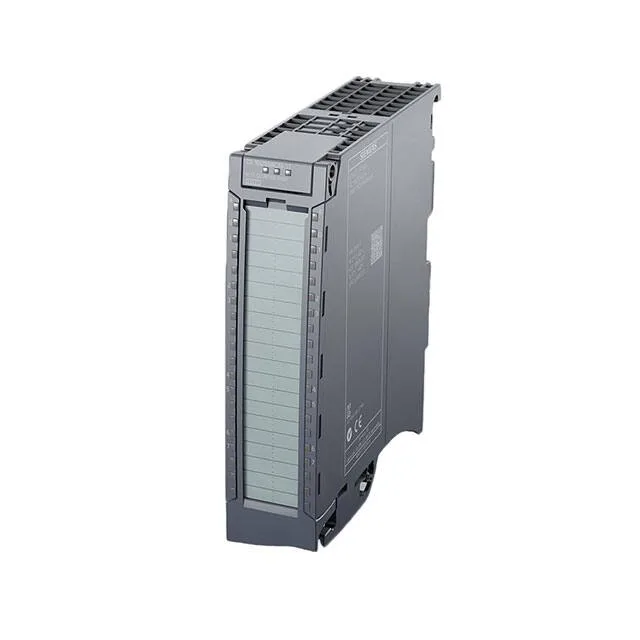

Siemens 6ES7522-5FH00-0AB0 Digital Output Module, 8× Triac 2

MPN6ES7522-5FH00-0AB0
Active

Siemens S7-1500, Digital Output Module, 8× Triac, 230V AC, 6.3A fuse, DQ, MSO, 6ES7522-5FH00-0AB0.

$265.43Ref. price · indicative, final on quote
Siemens 6ES7522-5FH00-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7522-5FH00-0AB0 — Outputs
ParameterValue
Digital outputs16
Output typeTriac
6ES7522-5FH00-0AB0 — Electrical
ParameterValue
Output current, resistive load, max.10 Hz
Output current at signal "1" (rated)1 A
Output current, max. per circuit / per module15 A; max. 1 AC cycle
Total output current per module, max.10 A; see additional description in the manual
Output voltage at signal "1" (min.)L1 (-1.5 V) at maximum output current; L1 (-8.5 V) at minimum output current
Residual current at signal "0", max.2 mA
Power dissipation (typ.)11.1 W
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation, channels in groups of2
Isolation test voltage3 100 V DC
6ES7522-5FH00-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo
Diagnostics functionNo
Diagnostic alarmNo
Short-circuit detectionNo
Wire-break detectionNo
Redundant load controlYes
6ES7522-5FH00-0AB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.1 AC cycle
Output switching delay 1 to 0, max.1 AC cycle
Switching frequency, inductive load, max.0.5 Hz
Switching frequency, lamp load, max.1 Hz
6ES7522-5FH00-0AB0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C
Operating temperature, horizontal mount, min.0 °C
6ES7522-5FH00-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width35 mm
Height147 mm
Depth129 mm
Weight (approx.)310 g

Product details

The 6ES7522-5FH00-0AB0: Supports DQ (device qualification) and MSO (maintenance shut-off) functions, enabling diagnostics and safe shutdown within the fail-safe CPU architecture. No PWM capability—triac outputs are strictly on/off for AC mains.

The module occupies one S7-1500 slot at 35 mm width, 147 mm height, 129 mm depth. Bonds to the backplane via standard U-connector; isolation tested at 3 100 V DC. Unshielded cable runs up to 600 m; shielded up to 1 000 m. Position it away from high-voltage drives to keep common-mode noise off the triac triggers. Channel status shown per green LED; module diagnostics via red LED. FW update possible, firmware revision V 1.2.0. Prioritized startup reduces bus scan time on power-up—useful for sequenced machine starts.
