Siemens 6ES7523-1BL00-0AA0

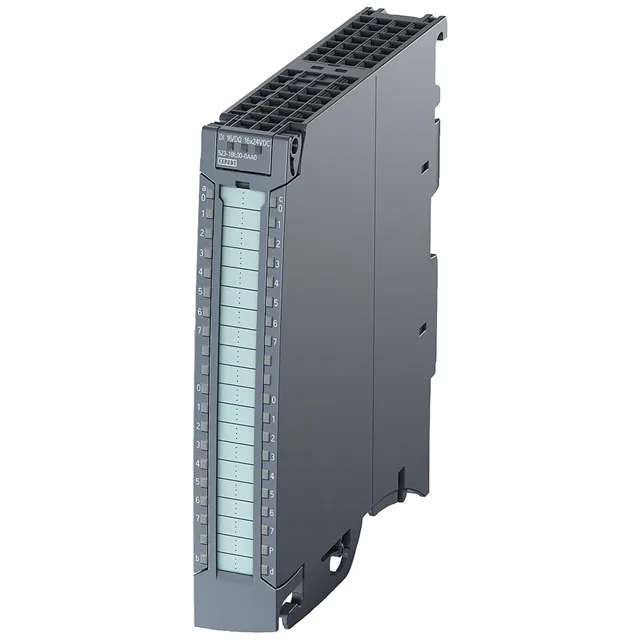

Siemens 6ES7523-1BL00-0AA0 S7-1500 DI/DQ module, 24V DC

MPN 6ES7523-1BL00-0AA0
Active

Siemens S7-1500 digital input/output module, 6ES7523-1BL00-0AA0, 16DI/16DO, 24V DC, 25 mm width, supplied with 40-pole push-in front connectors.

$289.56 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7523-1BL00-0AA0 specifications
ParameterValue
Depth129 mm
Width25 mm
Height147 mm
Source sink inputP-reading

Product details

The 6ES7523-1BL00-0AA0: This is a current-production S7-1500 mixed I/O module — 16 digital inputs and 16 digital outputs on a single 25 mm base. Runs on 24 V DC, burns 3.45 W typical. Comes with the 40-pole push-in connectors in the box, so no separate ordering step. Signal thresholds are standard: +11 to +30 V for a solid '1', -30 to +5 V for a '0'. Input response under 100 µs on the rising edge, 500 µs falling — fast enough for most discrete sensors and simple interlocks. Lifecycle status is current — no end-of-life notice. Sourced directly through the standard Siemens distribution channel; we quote against an RFQ.

Firmware and diagnostics

Ships with firmware V1.0.0 and supports field updates, so you can keep it current without swapping hardware. I&M data (I&M0 to I&M3) is available for asset tracking — handy if you maintain a fleet of S7-1500 racks. Green RUN LED and red ERROR LED give quick visual status. No diagnostic alarm, no hardware interrupt — it's a basic block meant for straightforward I/O, not high-speed cam or safety functions.

Unshielded max 600 m; shielded max 1 000 m. Supports two-wire sensors and current-sourcing inputs.

MPN
6ES7523-1BL00-0AA0
