Siemens 6ES7592-1AM00-0XB0
MPN6ES7592-1AM00-0XB0
Active

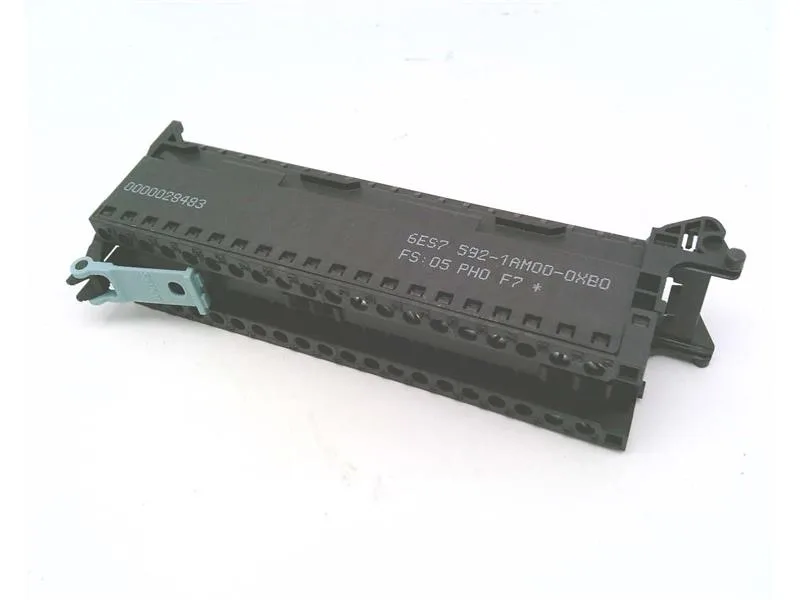

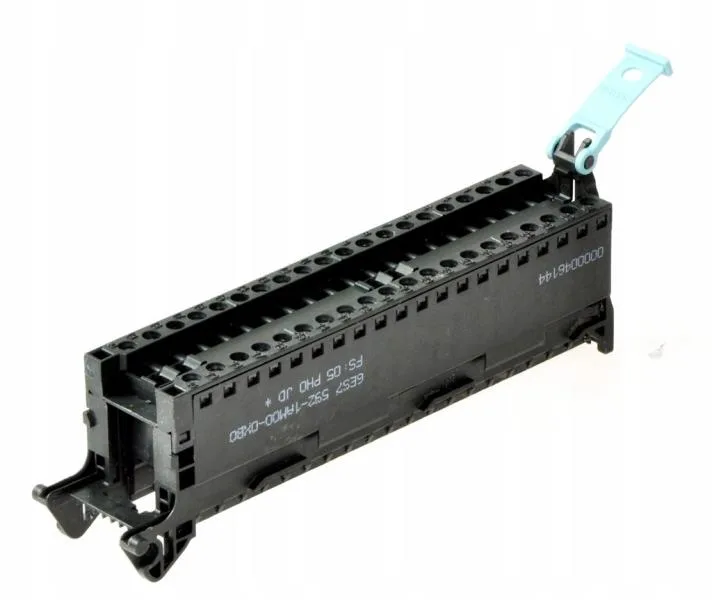

SIMATIC S7-1500, Front connector Screw-type connection system, 40-pole for 35 mm wide modules incl. 4 potential bridges, and cable ties
$30.48 – $50.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Width | 29.8 mm |
| Height | 130.5 mm |
| Depth | 46 mm |
| Parameter | Value |
|---|---|
| Tool | Screwdriver, conical design, 3 mm to 3.5 mm |
| Weight, approx. | 123 g |
| Connection method | Screw terminals |
| Tightening torque, max. | 0.7 N·m |
| Tightening torque, min. | 0.4 N·m |
| Number of lines per connection | 1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule |
| Stripped length of cables, max. | 11 mm |
| Stripped length of cables, min. | 10 mm |
| End sleeve acc. to DIN 46228 with plastic sleeve | Form E, 10 mm and 12 mm long |
| Connectable cable cross-sections for massive cables, min. | 16 |
| Connectable cable cross-sections for flexible cables with end sleeve, max. | 16 |
| Connectable cable cross-sections for flexible cables with end sleeve, min. | 24 |
| Connectable cable cross-sections for flexible cables without end sleeve, max. | 16 |
| Connectable cable cross-sections for flexible cables without end sleeve, min. | 24 |
MPN
6ES7592-1AM00-0XB0
