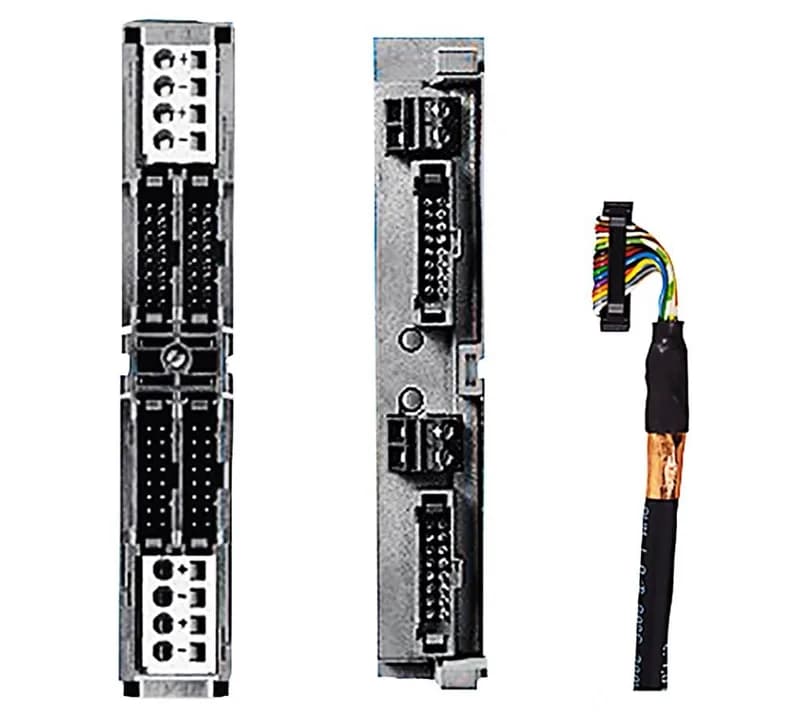

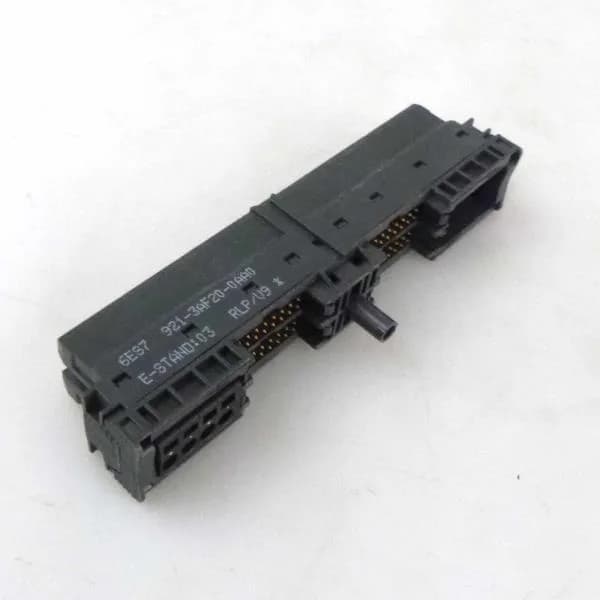

The Siemens 6ES7921-3AF20-0AA0 is a front connector module designed for SIMATIC S7-300 analog I/O modules. It connects the module to field wiring via a 40-pin IDC ribbon cable, with the power supply terminated through spring-clamp terminals at the top of the connector. Rated at 60 V and 1 A per contact, with a total current capacity of 4 A across all terminals, it handles the typical loop-powered analog signals (4-20 mA, 0-10 V) common in process automation panels.
Wiring and termination details
Accepts stranded conductors from 0.25 to 1.5 mm²; finely stranded wires with or without ferrule are limited to 0.25 to 0.75 mm². Strip length is 6 mm, and a 3.5 mm screwdriver blade is specified for the spring-clamp terminals. The power supply connection uses four spring-clamp positions: two for L+ and two for M, allowing daisy-chaining of the 24 V DC supply to adjacent modules without additional wiring. Maximum cable length between the front connector module and the terminal module is 30 m, which covers most panel-to-field wiring runs in a typical S7-300 cabinet layout.
