What this front connector does on an S7-300 rack

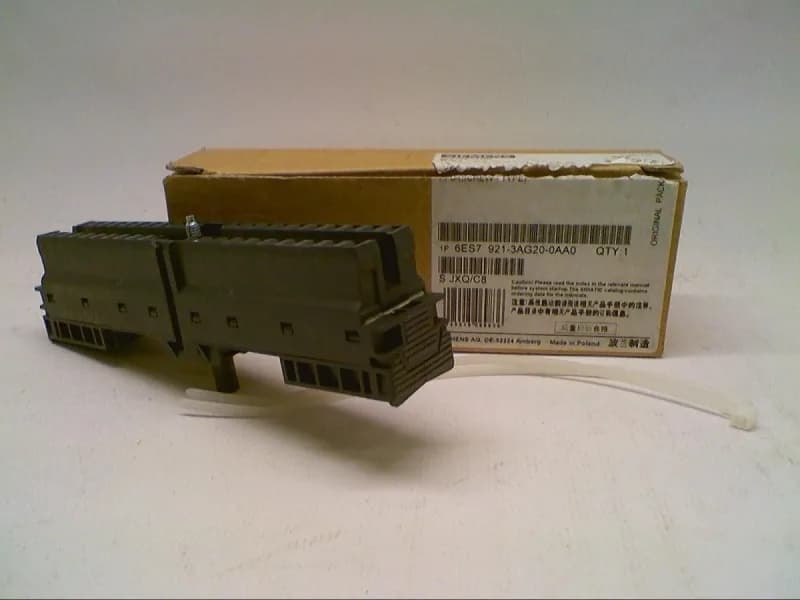

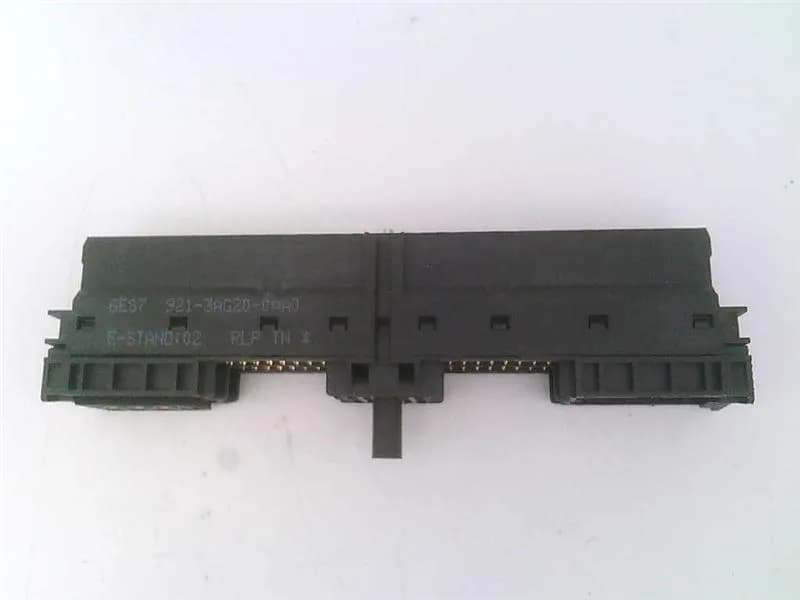

The Siemens 6ES7921-3AG20-0AA0 is a 40-pole front connector module that bridges the flat ribbon cable from an analog I/O module to the screw terminals on the SIMATIC S7-300. Rated at 60 V and 1 A per contact, with a total current capacity of 4 A across all terminals, it handles the signal-level wiring for analog inputs and outputs without taxing the backplane. The screw terminals accept stranded wire from 0.25 to 1.5 mm², stripped to 6 mm, torqued between 0.4 and 0.7 N·m — standard panel-builder practice for 24 V control loops. This module is designed specifically for analog I/O modules in the S7-300 system, not for digital or mixed-signal racks. The 40-pole IDC connector at the first interface mates with the flat ribbon cable, while the 4-pole plug-in connection on the other side feeds power through screw terminals — two for L+ and two for M, supporting up to two conductors per connection with ferruled ends.
Wiring and mounting on the rail
Mounts directly onto the S7-300 rail — no end cover plate required. The terminals sit at the top, which keeps the wiring accessible when the module is stacked between I/O blocks. Screwdriver blade width is 3.5 mm for the screw-type terminals. For fine-stranded wire with core-end processing, the range narrows to 0.25 to 0.75 mm² with an end sleeve per DIN 46228 without a plastic collar, trimmed to 5–7 mm. Solid wire is not supported, so plan for ferruled stranded throughout. The maximum cable run between this front connector module and the terminal module is 30 m — plenty for routing within a standard panel enclosure.
