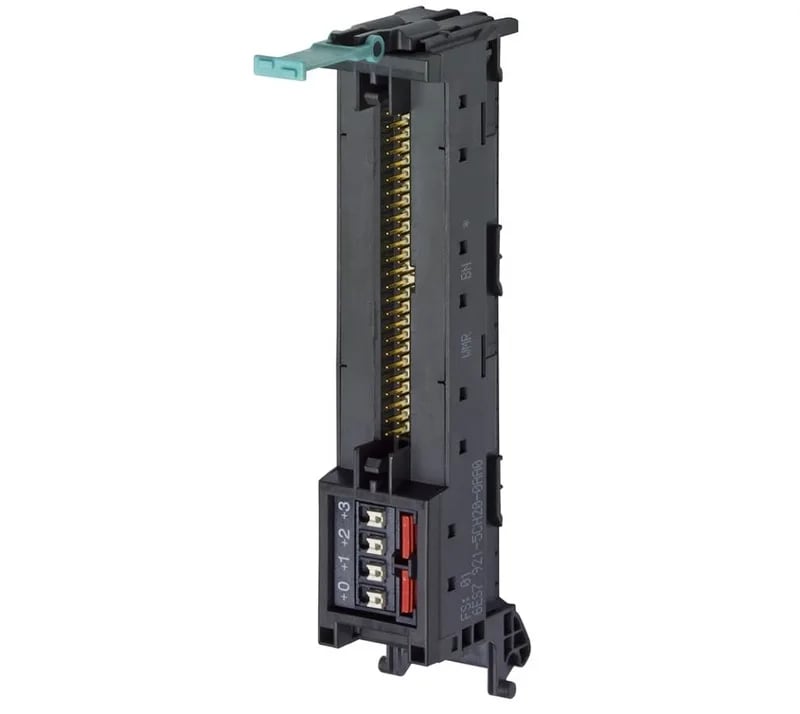

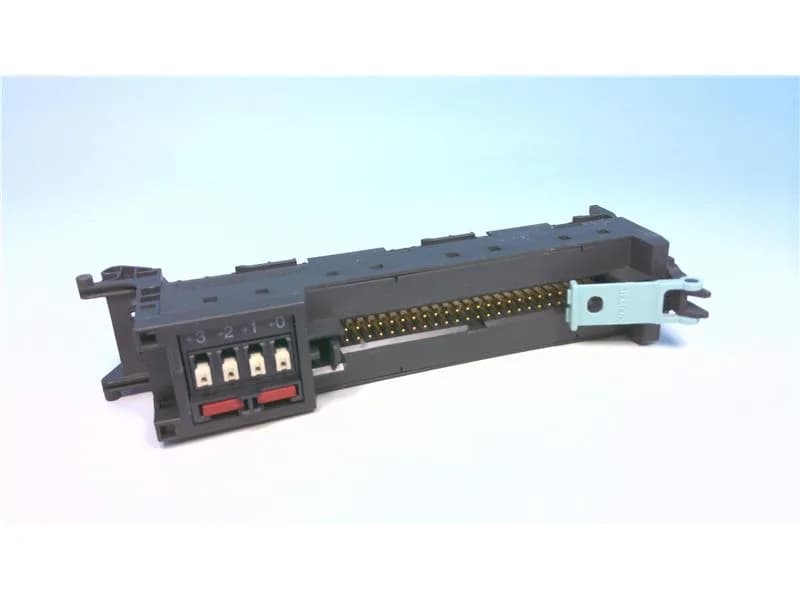

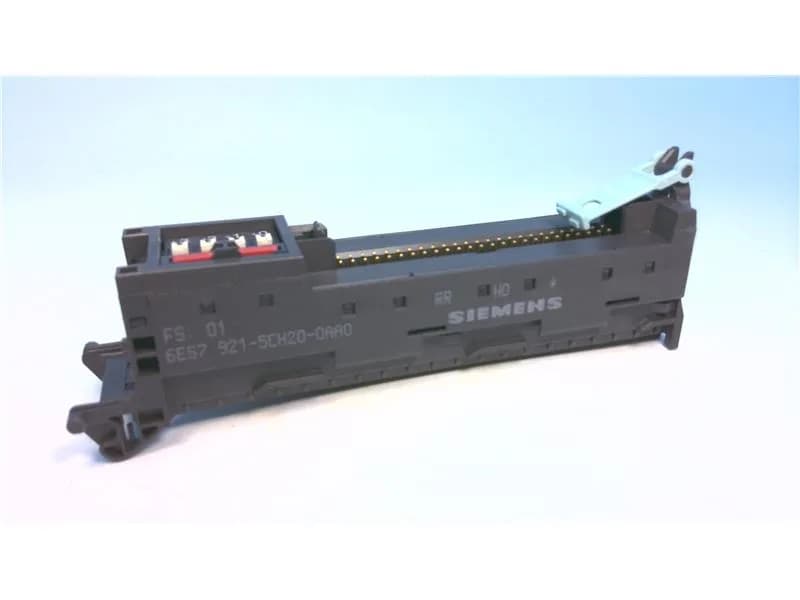

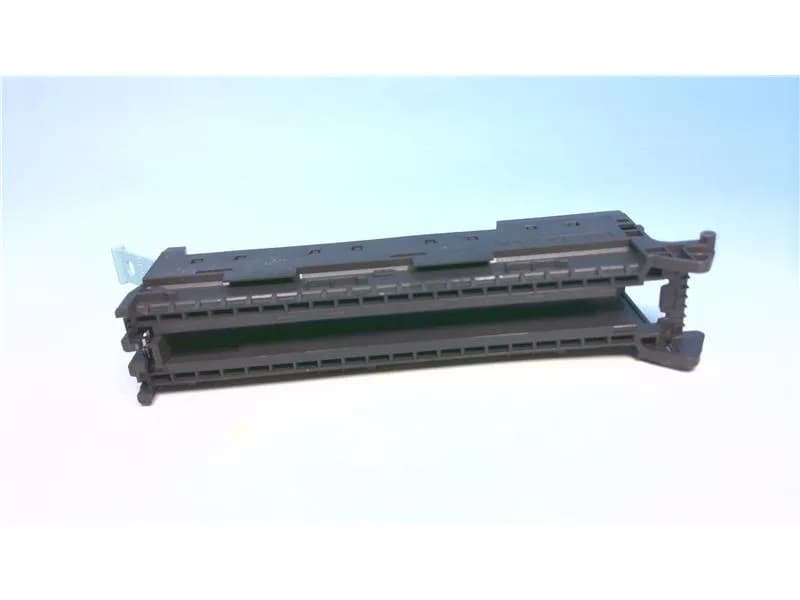

The Siemens 6ES7921-5CH20-0AA0 is a 40-pole front connector module for SIMATIC S7-1500 digital I/O modules. It carries the 24 V rated supply and signal wiring from the I/O module to the field via a 50-pole IDC connector on the cable side and push-in terminals on the power side. This is the piece that bridges the S7-1500 backplane to your field terminations — no rewiring the rack when you swap a module.
Key specs that matter for fit
Accepts stranded wire from 0.5 to 1.5 mm², with a stripped length of 8 mm. The push-in terminals on the power supply side take a 3.5 mm screwdriver blade. Rated for 24 V DC, with a maximum total current of 2 A in horizontal mounting position. Maximum wire run between the front connector module and the terminal module is 30 m — plan your cabinet layout within that. Pollution degree 2, overvoltage category II — standard for clean, controlled environments like a panel or enclosure.
Mounts directly on the S7-1500 I/O module — no DIN rail or end cover plate required. The 40 poles handle up to 32 digital I/O points plus power. Terminals sit at the top of the module; the IDC cable exits the front. Keep the 30 m cable length limit in mind when routing to a remote terminal block.
