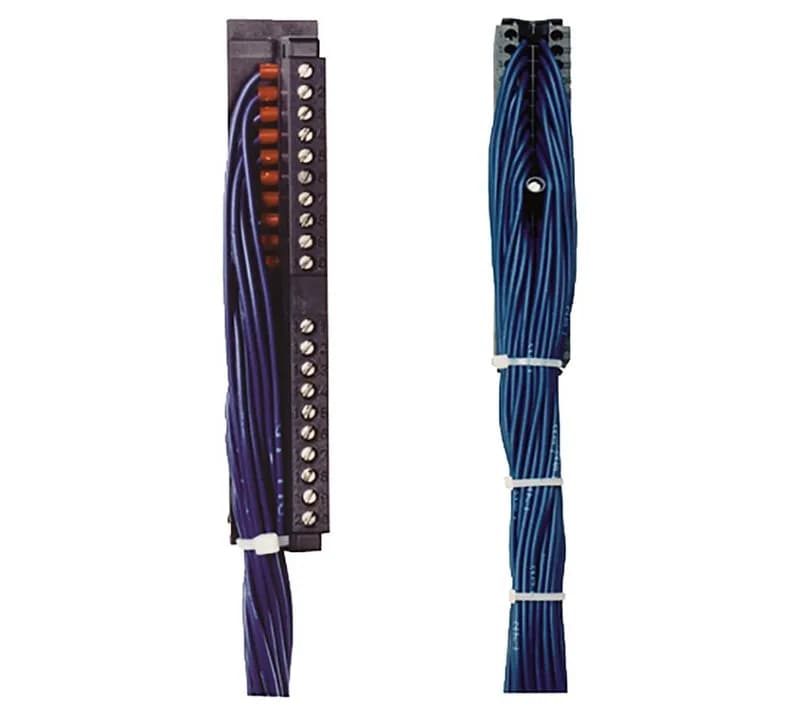

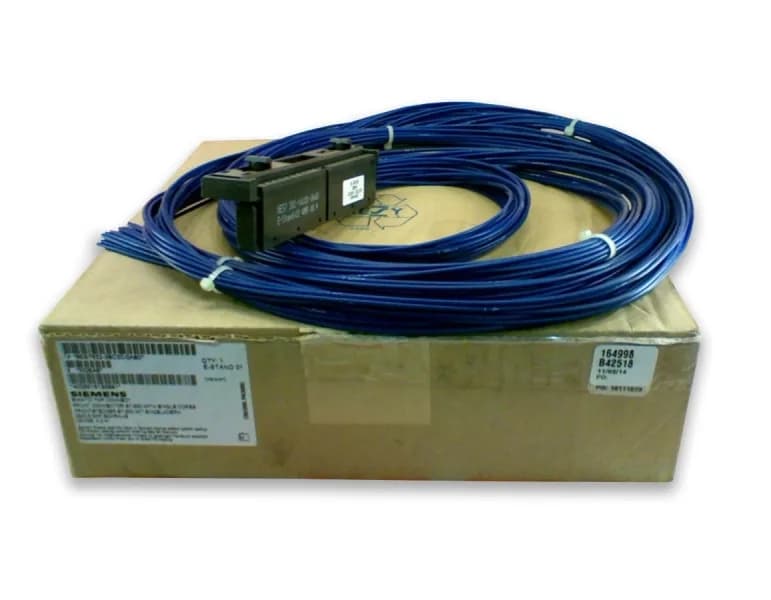

The Siemens 6ES7922-3BD20-0AB0 is a 20-pole front connector with pre-wired single cores for SIMATIC S7-300 digital I/O modules. It mates to the 6ES7392-1AJ00-0AA0 connector interface on the module face. The screw-type terminal block accepts the 20 individual H05V-K conductors (0.5 mm² each), color-coded blue (RAL 5010) and numbered 1 to 20 for field wiring. Rated at 24 V with a maximum of 30 V, it's sized for the signal-level circuits of a standard S7-300 I/O rack — not for power distribution.
Lifecycle stage is listed as mature. That means Siemens has no active phase-out plan, but the part is well into its production run — not a new release, not a last-time-buy.
The 3.2 m wire length gives enough reach to dress the cable bundle to a DIN-rail terminal block or a cable duct exit without a splice. The PVC sheath (2.2 mm outer diameter per core) handles the usual 0 to 60 °C operating range and -30 to +70 °C storage. No analog signal transmission — this connector is for digital I/O only, so don't route a 4-20 mA loop through it if you expect noise immunity.
