What it is and where it fits

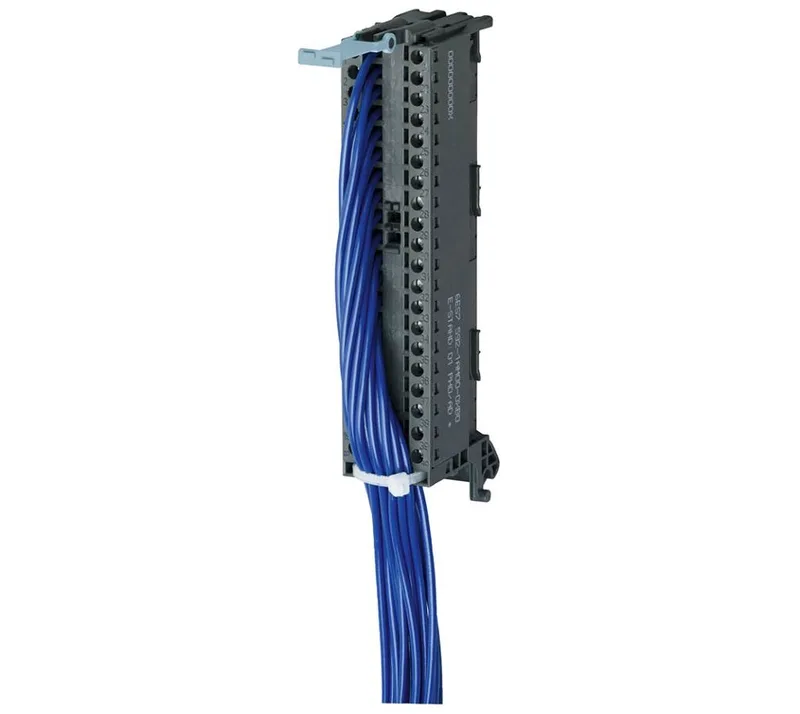

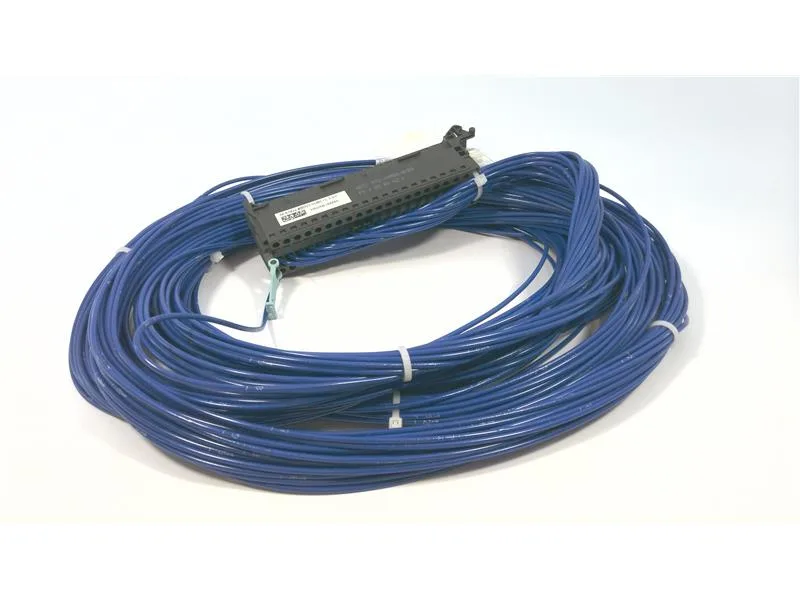

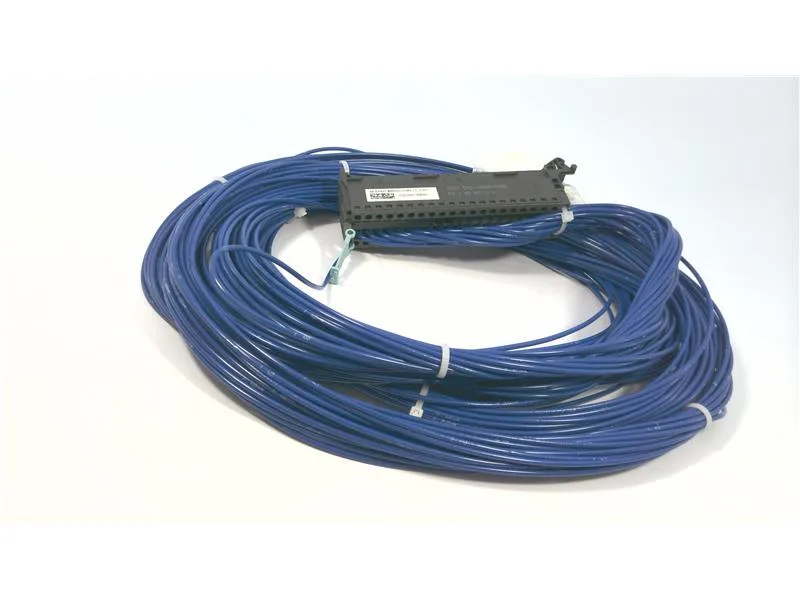

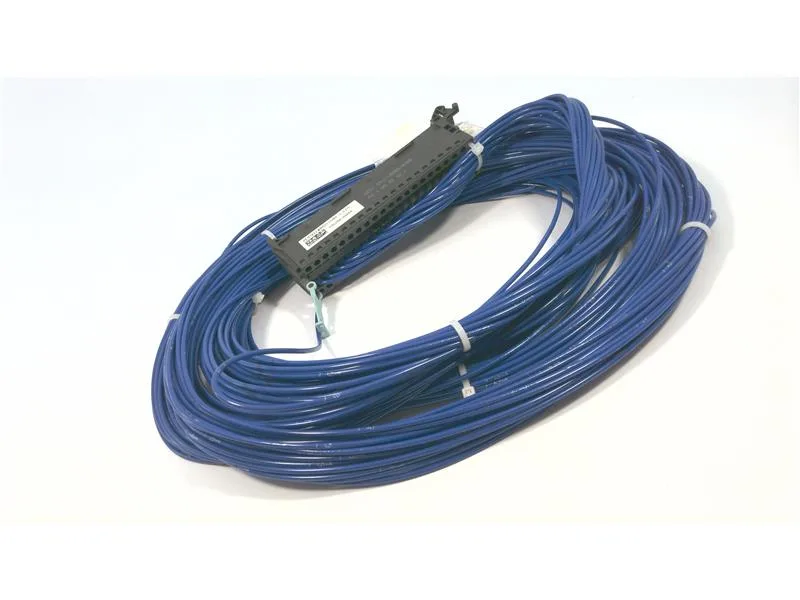

The Siemens 6ES7922-5BD20-0UB0 is a 40-pole front connector with 20 pre-terminated single cores, designed specifically for SIMATIC S7-1500 digital I/O modules. The screw-type terminal block on the enclosure side mates with the module's 40-pin header, and the 3.2 m multi-core braided cable terminates in individually numbered cores (1–20) for direct field wiring.
Key ratings and what they mean for fit
Rated at 24 V with a maximum of 30 V — this is a signal-level connector for 24 VDC digital I/O, not for power distribution. Each core is 0.5 mm², which is standard for S7-1500 digital input/output wiring up to the module's rated current. The 3.2 m cable length is generous for routing within a standard 800 mm enclosure to a nearby terminal strip.
Deployment context
This front connector snaps onto the S7-1500 module inside a control panel — the screw terminals on the connector body are wired to the module's I/O points, and the flying leads run to a DIN-rail terminal block or directly to field devices. The blue PVC sheath (RAL 5010) and numbered cores simplify tracing in dense cabinets.
