What it is and where it lands

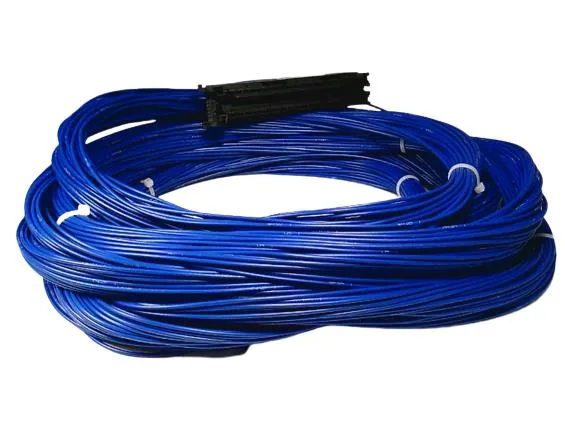

The 6ES7922-5BF00-0AC0 is a pre-wired front connector for SIMATIC S7-1500 I/O modules. It comes as a 40-pole screw-type terminal block with 40 individual single cores, each 0.5 mm² H05V-K, bundled into a 5 m blue PVC cable sheath. The cores are numbered consecutively 1 to 40 at the white adapter contact, matching the terminal positions on the module face. This connector is designed for digital I/O modules, not for analog signal transmission. The screw-type termination on the enclosure side accepts field wiring, while the pre-terminated cable end plugs into the module via the 6ES7592-1AM00-0XB0 mating connector.
What the ratings mean for fit
Rated at 24 V with a maximum of 30 V, this connector handles the standard S7-1500 backplane bus voltage and the 24 V DC field supply for digital inputs and outputs. The 30 V ceiling covers transient peaks without derating — important when sharing a supply with inductive loads like contactors or solenoid valves. The 5 m cable length is a fixed assembly, not a field-cut option. That reach suits a panel where the I/O rack sits on one DIN rail and the terminal blocks or marshalling cabinet are a few meters away. Shorter runs mean coiling the excess; longer runs require a different order code or a junction box. Operating temperature range is 0 to 60 °C, storage from -30 to +70 °C. The PVC sheath (RAL 5010 blue) is standard for S7-1500 signal cables and holds up in typical control-panel environments.
Sourcing and lifecycle reality
The mating half on the module side is the 6ES7592-1AM00-0XB0, a separate order code. If you are retrofitting an existing S7-1500 rack, verify that the module's front-connector receptacle matches this variant — earlier revisions used a different keying.
