Siemens 6ES7924-0AA10-0AA0

Siemens 6ES7924-0AA10-0AA0 Terminal Block, 8 Channels, 60 V,

MPN 6ES7924-0AA10-0AA0

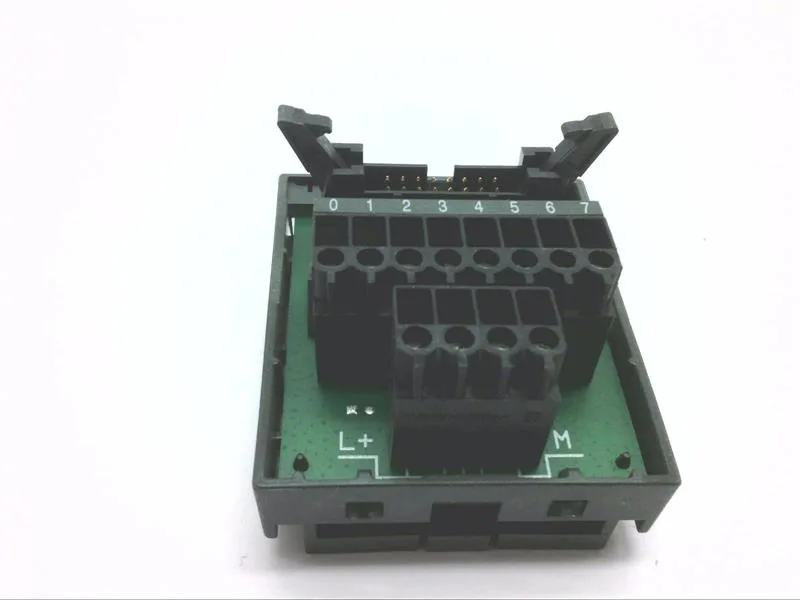

Siemens TP1 terminal block, 6ES7924-0AA10-0AA0, 8 channels with 2x2 terminals for potential supply, screw-type connection, rated 60 V / 1 A, 63 mm length, DIN rail 35/15 mm mounting.

$8.99 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7924-0AA10-0AA0 specifications
ParameterValue
MountingDIN rail 35 mm, DIN rail 15 mm
Temp operating max60 °C
Temp operating min0 °C
Width55 mm
Length63 mm

Product details

The Siemens 6ES7924-0AA10-0AA0 is a TP1 terminal block providing 8 channels with 2x2 terminals dedicated for potential supply — the infeed function means it can distribute a common potential across the block, which is the core job in a SIMATIC S7-300 / ET 200M I/O rack where you need to feed 24 V DC or similar to multiple modules from one point. Rated at 60 V and 1 A, this is a signal-level block, not a power-distribution terminal; it handles the control-side wiring for sensors, actuators, and module supply rails. The screw-type connection on the actuator/sensor side and plug-in connection for the cable side match the standard S7-300 front connector interface.

Mounts on either 35 mm or 15 mm DIN rail — the 15 mm profile is less common but useful in shallow enclosures or retrofit panels where the standard 35 mm rail is already crowded. The enclosure measures 63 mm long, 55 mm wide, and 43.2 mm high at its lowest installation profile. The single terminal level with top-positioned terminals keeps wiring accessible. No end cover plate is required, and the block carries a V-1 flammability rating per UL 94, which is the baseline for most industrial control panels — it self-extinguishes and won't propagate a flame.
