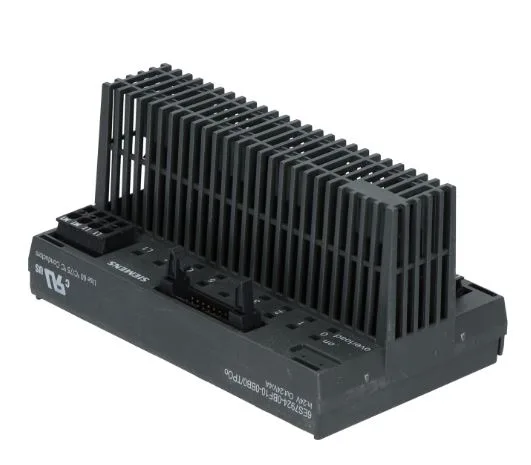

The Siemens 6ES7924-0BF10-0BB0 is a terminal block with integrated optocoupler designed for the SIMATIC S7-300 I/O system. It provides 8 normally-open (NO) outputs, each rated at 24V DC and 4A, with overload and short-circuit protection. The block includes LED indication per channel and an error message output, all terminated via spring-cage connectors on a 16-pole IDC cable interface.
The 4A per-channel output is a continuous rating at 24V DC, so it handles small solenoid valves, indicator lamps, or PLC digital outputs. It is not sized for motor contactor coils above 4A inrush — that would require an intermediate relay. The 8 NO configuration means all outputs are normally-open; if your circuit needs a normally-closed (NC) contact for fail-safe logic, this block does not provide it. The overload and short-circuit proofing is internal, not dependent on an external fuse — it self-protects and signals the fault via the LED and error message line.
Where this class of part is used
Terminal blocks with optocouplers like this one sit between the PLC output module and the field wiring. They provide galvanic isolation between the control logic (typically 24V DC) and the load circuit, protecting the CPU from back-EMF or voltage spikes. In a SIMATIC S7-300 rack, this block plugs onto the front connector of a digital output module, converting the module's ribbon-cable signals into discrete screw or spring terminals for field termination.
