What it is and where it fits

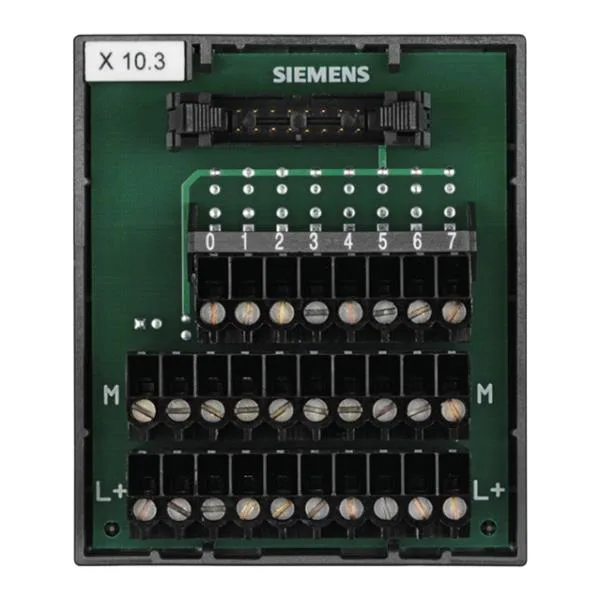

The Siemens 6ES7924-0CA10-0AB0 is a TP3 terminal block with 8 channels and 2x10 terminals arranged for potential supply — think of it as a power distribution hub inside a control cabinet, not just a pass-through block. It uses spring terminals and a plug-in connection for the cable side, so wiring lands fast and stays put without retorquing. Rated at 60 V and 1 A, it handles the logic-level and sensor supply rails common in SIMATIC S7-300 and ET 200 distributed I/O systems. The 80 mm length and 68 mm width fit neatly on standard 35 mm DIN rail (also works on 15 mm rail), and at 43.2 mm height it clears most enclosure lids without a problem.
What the ratings mean for your BOM
The 60 V rated value and 1 A current rating tell you this block is sized for control-voltage distribution — 24 VDC sensor buses, 48 V signal loops, or the 60 V auxiliary rail in a mixed-voltage panel. It is not a power terminal for motor circuits or anything above SELV limits. The stranded wire range of 0.5 to 2.5 mm² (0.5 to 1.5 mm² with ferruled ends) covers the common field-wire sizes for proximity sensors, solenoids, and I/O modules; if your panel uses solid wire, that range is the same. The spring-cage connection means no screwdriver torque check during commissioning — push the orange lever, insert the stripped wire, release. The infeed function means this block can serve as the power entry point for a row of terminals, feeding the busbar inside the block rather than requiring a separate jumper.
Panel integration notes
Mounts on 35 mm DIN rail per DIN EN 60715 (also fits 15 mm rail). The single terminal level with top-entry wire position keeps the wiring tidy in a multi-row cabinet — no reaching around a lower tier. No end cover plate is required, so you can butt it directly against the next terminal block. The black enclosure is the standard color for potential-distribution blocks in Siemens TP3 family; if your panel uses a color-coding scheme for voltage levels, note that this is not a blue or green-yellow PE block — there is no PE connection and no shield connection. The reference code per IEC 81346-2 is X, which maps to 'terminal block' in the standard component designation system.
