Terminal Block for Analog SIMATIC S7 Modules

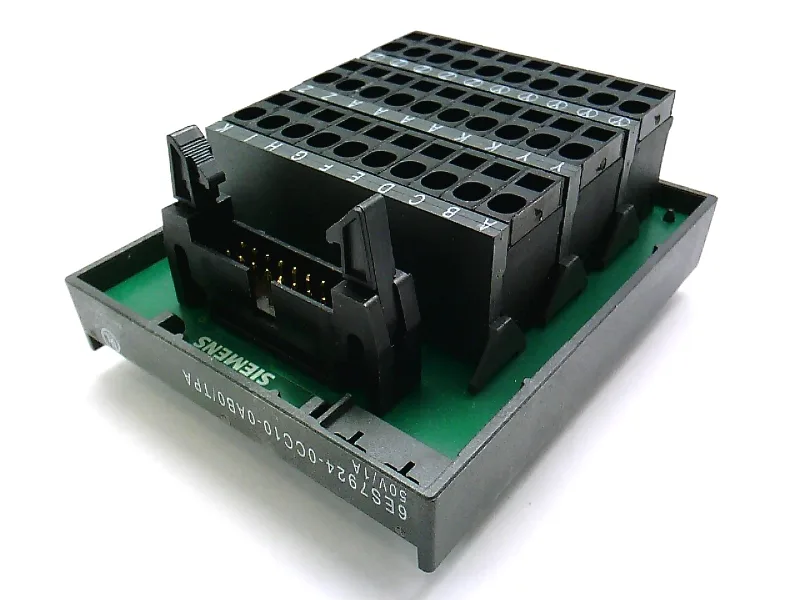

The Siemens 6ES7924-0CC10-0AB0 is a 3-row terminal block designed specifically for analog SIMATIC S7 modules, using a spring-terminal, plug-in connection with 16 poles and IDC termination for cable. Rated at 60 V and 1 A, it accepts stranded wire from 0.5 to 2.5 mm² and finely stranded wire with core-end processing from 0.5 to 1.5 mm². Mounts on both 35 mm and 15 mm DIN rails, with a black enclosure measuring 80 mm long, 68 mm wide, and 43.2 mm high.
Integration and Wiring Notes
The plug-in connection type means the terminal block mates directly to the module header — no screw terminals to torque, which speeds panel wiring and reduces rework on the line. A single terminal level with one terminal point per level keeps the wiring layout simple; the infeed function is built in, so no separate feed-through block is needed for the analog supply. Operating temperature range of 0 to 60 °C suits the inside of a ventilated enclosure; the UL 94 V-1 flammability rating meets the standard for panel-mounted plastic components.
Lifecycle and Sourcing Reality
No official successor has been announced, so the 6ES7924-0CC10-0AB0 remains the current order code for this analog S7 terminal block.
