Siemens 6ES7924-1AA10-0BA0 — PLC Accessories

Siemens 6ES7924-1AA10-0BA0 Connection Module, 60 V, 1 A, DIN

MPN6ES7924-1AA10-0BA0

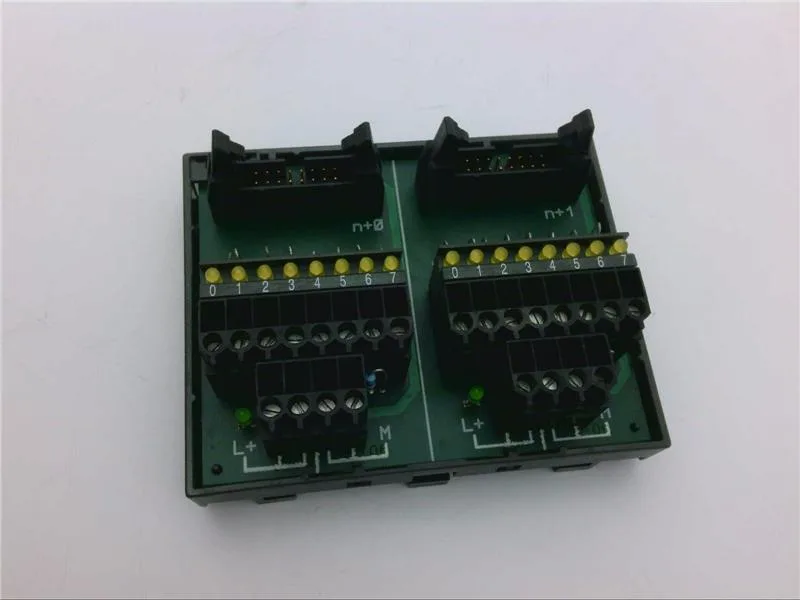

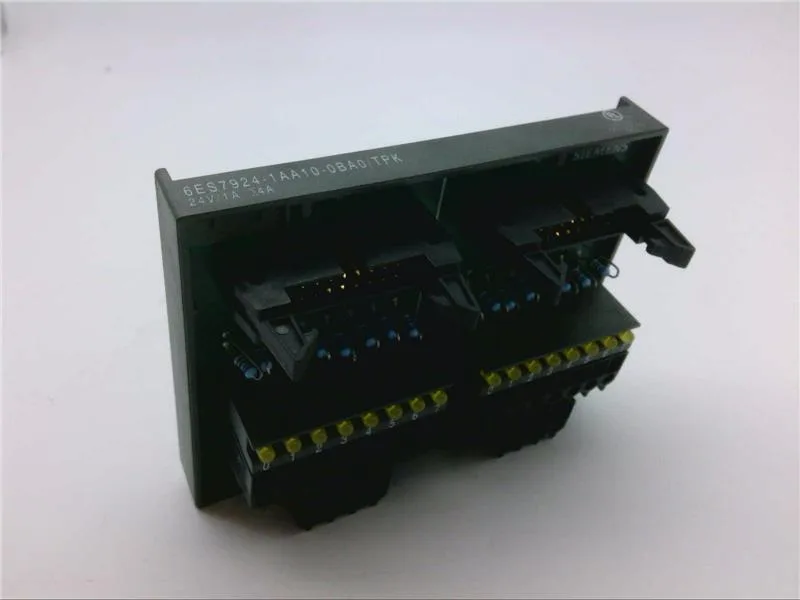

Siemens SIMATIC S7-300 connection module, TPK 2x8 channels, 2x2x2 terminals, screw terminal with LED, 60 V rated, 1 A, DIN rail 35 mm mount.

$43.43Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7924-1AA10-0BA0 — Connection & Wiring
ParameterValue
Electrical connection type, connecting cablePlug-in connection
Conductor cross-section, stranded0.5 ... 2.5 mm²
Conductor cross-section, finely stranded (with ferrule)0.5 ... 2.5 mm²
6ES7924-1AA10-0BA0 — Electrical
ParameterValue
Rated current1 A
Rated value60 V
6ES7924-1AA10-0BA0 — Mechanical
ParameterValue
Mounting typeDIN rail 35 mm, DIN rail 15 mm
Terminal positionTop
6ES7924-1AA10-0BA0 — Environmental
ParameterValue
Operating temperature range0 ... 60 °C
6ES7924-1AA10-0BA0 — Approvals
ParameterValue
Ex e (EEx e) protection type testedNo

Product details

The Siemens 6ES7924-1AA10-0BA0 is a connection module (TPK 2x8 channels) with 2x2x2 terminals for potential supply, using screw-type terminals and an LED indicator. It mounts on 35 mm or 15 mm DIN rail.

Rated at 60 V and 1 A, this module handles low-voltage control signals and sensor supply.

No official successor or discontinuation notice is on record. The infeed function suggests it can serve as a power-feeding terminal block.

The module is 80 mm long, 100 mm wide, and 43.2 mm high. It has one terminal level with one terminal point per level.

Frequently asked questions

What is the physical size of this module?

The module measures 80 mm long, 100 mm wide, and 43.2 mm high. It mounts on 35 mm or 15 mm DIN rail.

Can this module be used as a power infeed for a terminal block chain?

Yes, the product function includes an infeed function, meaning it can supply potential to downstream terminals in the same rail assembly.
