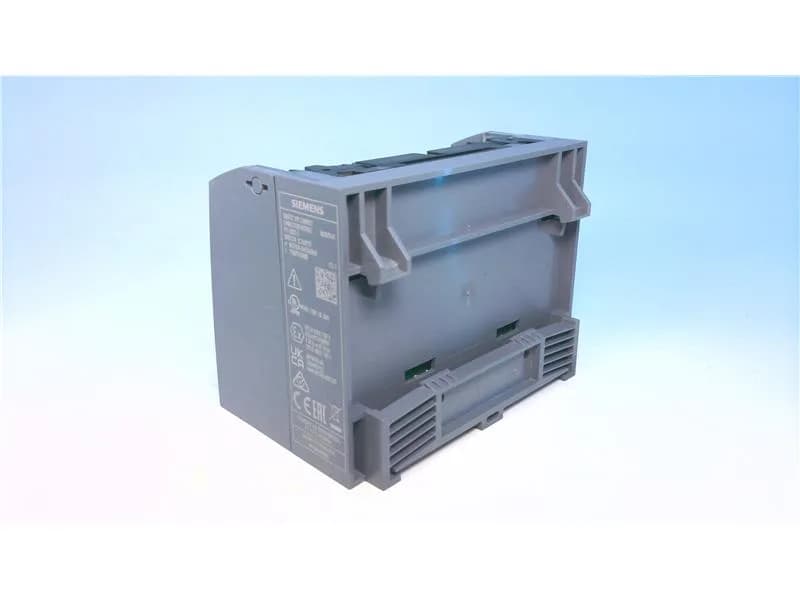

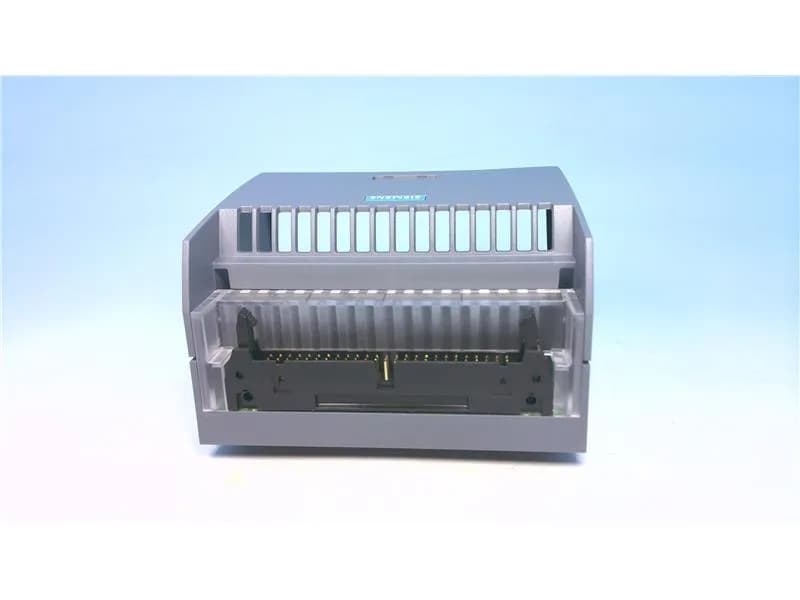

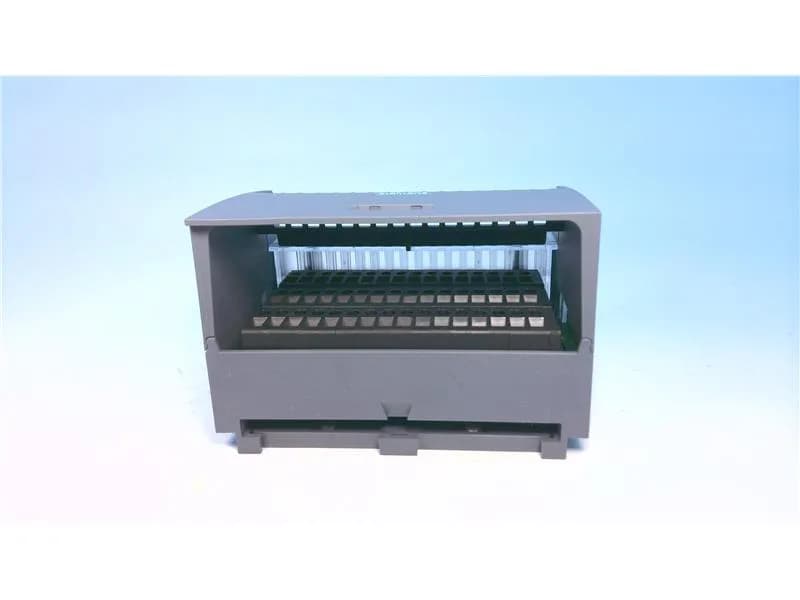

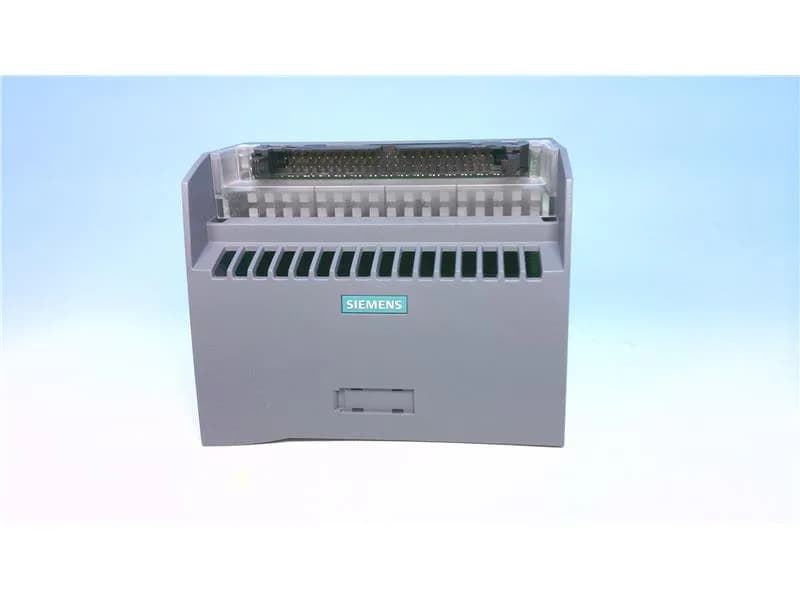

Siemens 6ES7924-2AA20-0AA0
MPN6ES7924-2AA20-0AA0
Active
Connection module TP1 32 channels a. 4x2 terminals f. Potential supply Type: Screw terminal without LED, VPE=1 unit 50 pole IDC connector f. cable
$30.48 – $69.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Connection module |
| Target system | SIMATIC S7-1500 |
| Suitability / intended use | Digital I/O modules |
Connection & Wiring
| Parameter | Value |
|---|---|
| Number of poles, 1st interface | 50; the IDC connector for the connection cable |
| Connecting terminal type | Screw-type terminal |
| Electrical connection type, connecting cable | Plug-in connection |
| Conductor cross-section, stranded | 0.5 ... 2.5 mm² |
| Conductor cross-section, finely stranded (with ferrule) | 0.5 ... 2.5 mm² |
Electrical
| Parameter | Value |
|---|---|
| Rated current | 1 A |
| Rated value | 50 V |
| Overvoltage category | 2 |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN rail 35 mm, DIN rail 15 mm |
| Terminal position | Top |
| Cable length, max. | 30 m; between front connector module and Connection module |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 60 °C |
| Operating temperature range | 0 ... 60 °C |
| Storage temperature range | -40 ... +70 °C |
| Pollution degree | 2 |
Approvals
| Parameter | Value |
|---|---|
| Ex e (EEx e) protection type tested | No |
MPN
6ES7924-2AA20-0AA0
