Siemens 6ES7953-8LJ30-0AA0 — PLC Accessories

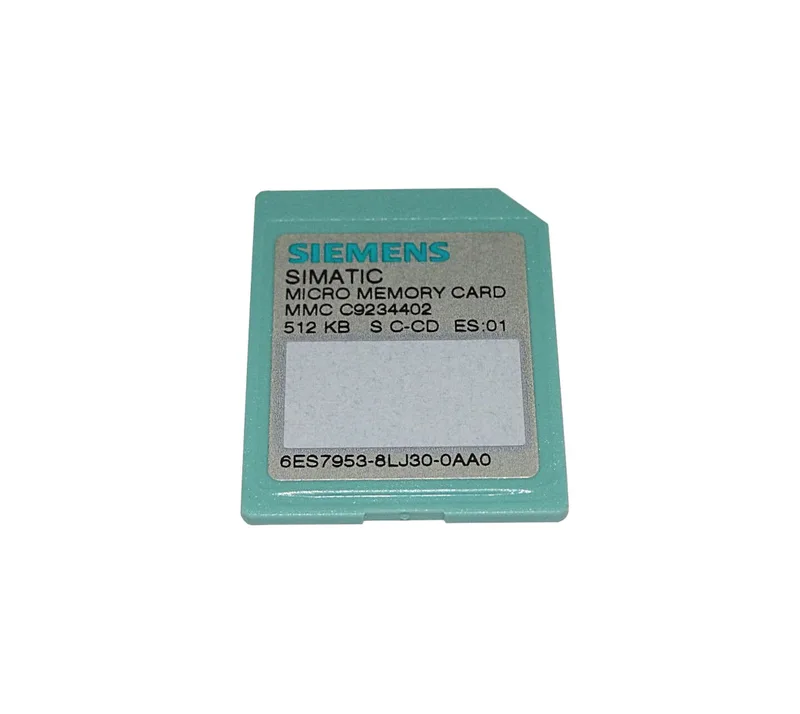

Siemens 6ES7953-8LJ30-0AA0 Micro Memory Card, 512 KB Flash-E

MPN6ES7953-8LJ30-0AA0

Siemens SIMATIC S7-300 / ET 200 Micro Memory Card, 512 kbyte Flash-EPROM, 6ES7953-8LJ30-0AA0.

$139.70 – $275.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7953-8LJ30-0AA0 — Specifications
ParameterValue
Depth1.4 mm
Width24 mm
Height32 mm
Memory size512 kbyte
Type of memoryFlash-EPROM
Weight, approx.2 g
Belongs to productS7-300 / ET 200
Number of write (delete operations, min.)100 000
Data retention (after final programming action), min.10 a

Product details

The Siemens 6ES7953-8LJ30-0AA0 is a Micro Memory Card (MMC) for the S7-300, C7, and ET 200 families — the spare-part designation in the description tells you this is the replacement card for existing installations, not a new-design option. It stores 512 kbyte on Flash-EPROM, which means the program and data survive a power loss without a battery.

This card is classified as mature in its lifecycle — still available through the supply channel, but no longer the target for new machine designs. If you are keeping a line running on S7-300 or ET 200, this is the correct spare. Source it against an RFQ; we quote to order.

The 512 kbyte capacity is enough for a medium-size S7-300 program — think a few hundred network blocks with symbol tables and comments. Flash-EPROM retains data for a minimum of 10 years after the last write, and the card handles at least 100,000 write/delete cycles, so it holds up to frequent recipe or parameter updates on a packaging or bottling line.

Frequently asked questions

What is the memory size and type?

512 kbyte Flash-EPROM, with a minimum of 100,000 write/delete cycles and 10 years data retention after the final write.

Which Siemens controllers does this card fit?

It belongs to the S7-300, C7, and ET 200 product families — the standard MMC slot on those CPUs and interface modules.
