Siemens 6ES7954-8LF00-0AA0 — PLC Accessories

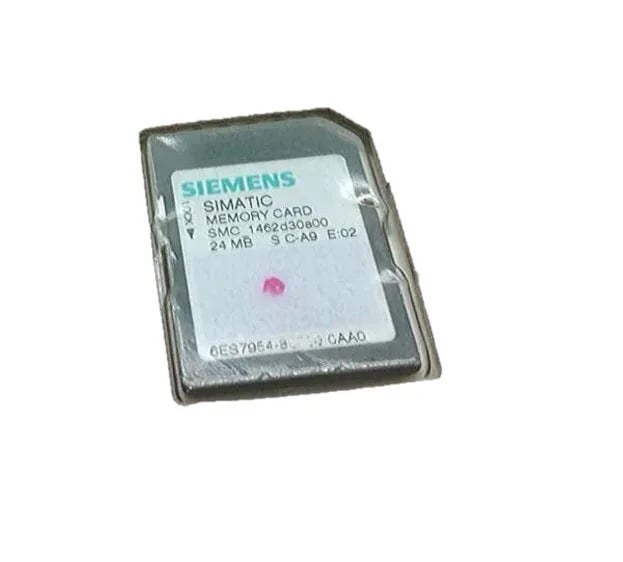

Siemens 6ES7954-8LF00-0AA0 SIMATIC S7 Memory Card, 24 Mbyte

MPN6ES7954-8LF00-0AA0

Siemens SIMATIC S7 memory card, 6ES7954-8LF00-0AA0, 24 Mbyte Flash-EPROM, 3.3 V NFLASH, for S7-1200 CPU.

$228.60Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Specifications

6ES7954-8LF00-0AA0 — Specifications
ParameterValue
Depth2.1 mm
FlashYes
Width24 mm
Height32 mm
Memory size24 Mbyte
Type of memoryFlash-EPROM
Weight, approx.3 g

Product details

The Siemens 6ES7954-8LF00-0AA0 is a SIMATIC S7 memory card for the S7-1200 CPU, storing the user program and data on 24 Mbyte of Flash-EPROM at 3.3 V NFLASH. That 24 Mbyte capacity determines how large a project — including code, tags, and configuration data — the CPU can hold; for a mid-size line with a few hundred I/O points and basic recipe management, this is the typical headroom. The Flash-EPROM type means the program is retained without battery backup across power cycles, so no reload after a power loss.

This part carries a mature lifecycle stage, meaning it's a stable, long-available product — not newly introduced, not on phase-out notice.

Frequently asked questions

What is the memory size and type of this card?

It has 24 Mbyte of Flash-EPROM memory. Flash-EPROM retains the program without battery backup, so the CPU holds its application through power cycles.

What are the physical dimensions of this memory card?

The card is 24 mm wide, 32 mm tall, and 2.1 mm deep. It fits the dedicated memory card slot on the front of the S7-1200 CPU.

Does this card work with an S7-1200 CPU?

Yes, the manufacturer description specifies it is a SIMATIC S7 memory card for the S7-1200 CPU, running on 3.3 V NFLASH.

MPN
6ES7954-8LF00-0AA0
